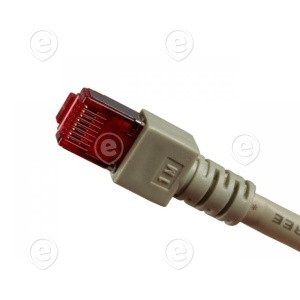

RJ45 Patchcable S/FTP,Cat.6
Price:
11,57 €
ARTICLE INFORMATION
The shielded Cat.6 RJ45 patch cable with ensures excellent performance for 5 Gigabit Ethernet applications.Cross section 4 x 2 x AWG27/7
Moulded grommet (patented)
Length imprint on the boot
PRODUCT FEATURES
- Colour outer sheath
- grey
- Area of Application
- Structured cabling;Industrial Ethernet;Data center
- Category
- 6
- Type of connector connection 1
- RJ45 8(8)
- Type of connector connection 2
- RJ45 8(8)
- Connector type
- RJ45 Standard
- Contacts
- Gold plated
- Pin assignment
- 1:1
- Allocation
- acc. TIA/EIA 568B
- Type
- Shielded
- Length imprint
- yes
- Anti-kink sleeve
- moulded
- Colour anti-kink sleeve
- grey
- Locking lever
- yes
- Mating cycles
- 2000
- Bending radius
- >31 mm
- Conductive shield
- Selected shield contact
- Suitable for degree of protection (IP)
- IP20
- Cable type
- S/FTP
- Cable construction
- 4x2
- AWG-size
- 27/7
- Conductor Material
- Copper
- Silicone-free
- yes
- Jacket material
- LSZH
- Printing
- Cat.6 S/FTP 4x2xAWG27/7 PIMF ISO/IEC 11801 & EN50173-1 TIA/EIA 568B.2-1 Halogen Free ***Gigabit***
- Outer diameter of the cable
- 6.2 mm
- Flame-retardant
- acc. IEC60332-1
- Halogen-free
- yes
- Low smoke
- yes
- Temperature range
- 0 – 60 °C
- NVP value
- - %
- Conductor resistance DC
- 185 Ω/km
- Loop resistance
- 370 Ω/km
- Resistance unbalance
- 5 %
- Insulation resistance
- 10 MΩ
- Contact resistance
- 30 mΩ
- POE class
- PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt
- Current capacity
- max. 1 A
- Operating-/ tempering voltage
- max. 50 V DC
- Bandwidth
- 250MHz
- Transmission
- 5Gbit
- Connector
- IEC 60603-7-5
Length | 10,0m |
Standard | CAT6E |
Type | FTP |
Color | Grey |
