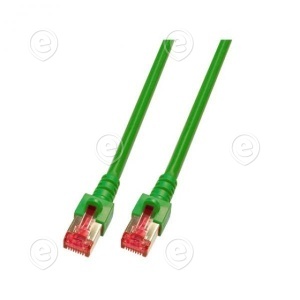

PC RJ45 CAT6 S/FTP green 20M

SKU: EFBK5514.20
EAN: 4049759021498
Brand:
Unit: tk
Qty: Out of Stock
Price: 22,05 €
tk
 Add to cart

ARTICLE INFORMATION

The shielded Cat.6 RJ45 patch cable with ensures excellent performance for 5 Gigabit Ethernet applications.

Cross section 4 x 2 x AWG27/7
Moulded grommet (patented)
Length imprint on the boot

PRODUCT FEATURES

  • Colour outer sheath
  • green
  • Area of Application
  • Structured cabling;Industrial Ethernet;Data center
  • Category
  • 6
  • Type of connector connection 1
  • RJ45 8(8)
  • Type of connector connection 2
  • RJ45 8(8)
  • Connector type
  • RJ45 Standard
  • Contacts
  • Gold plated
  • Pin assignment
  • 1:1
  • Allocation
  • acc. TIA/EIA 568B
  • Type
  • Shielded
  • Length imprint
  • yes
  • Anti-kink sleeve
  • plugged in
  • Colour anti-kink sleeve
  • green
  • Locking lever
  • yes
  • Mating cycles
  • 2000
  • Bending radius
  • >31 mm
  • Conductive shield
  • Selected shield contact
  • Suitable for degree of protection (IP)
  • IP20
  • Cable type
  • S/FTP
  • Cable construction
  • 4x2
  • AWG-size
  • 27/7
  • Conductor Material
  • Copper
  • Silicone-free
  • yes
  • Jacket material
  • LSZH
  • Printing
  • Cat.6 S/FTP 4x2xAWG27/7 PIMF ISO/IEC 11801 & EN50173-1 TIA/EIA 568B.2-1 Halogen Free ***Gigabit***
  • Outer diameter of the cable
  • 6.2 mm
  • Flame-retardant
  • acc. IEC60332-1
  • Halogen-free
  • yes
  • Low smoke
  • yes
  • Temperature range
  • 0 – 60 °C
  • NVP value
  • - %
  • Conductor resistance DC
  • 185 Ω/km
  • Loop resistance
  • 370 Ω/km
  • Resistance unbalance
  • 5 %
  • Insulation resistance
  • 10 MΩ
  • Contact resistance
  • 30 mΩ
  • POE class
  • PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt
  • Current capacity
  • max. 1 A
  • Operating-/ tempering voltage
  • max. 50 V DC
  • Bandwidth
  • 250MHz
  • Connector
  • IEC 60603-7-5
Length 20,0m
Standard CAT6E
Type FTP
Color Green
