Home » Network and server cabinets » Frames 19" » 19" Network Cabinet PRO-Modular 42U, 800x800 mm, RAL7035

19" Network Cabinet PRO-Modular 42U, 800x800 mm, RAL7035
picture picture

19" Network Cabinet PRO-Modular 42U, 800x800 mm, RAL7035

SKU: PRO-4288GR.0D
EAN: 4049759218461
Brand:
Unit: kmpl
Qty: Out of Stock
Price: 878,40 €
kmpl
 Add to cart

ARTICLE INFORMATION

19" rack frame according to DIN41494
Screwed steel sheet frame, completely pre-assembled, self-ventilated, dismountable
Inside front and rear 4 x 19"profiles (2 front, 2 rear-sided), galvanised, step-less depth-adjustable
Contrariwise numbering of rack units at the 19" profiles
Delivery without front/rear door and side walls for modular, individual configuration
For installed front and rear door, door stop left or right-sided possible
Cabinets stackable side-by-side with and without removal of the side walls, baying set (Art.-No. PRO-ANR0X), otherwise screwable via screw set M6

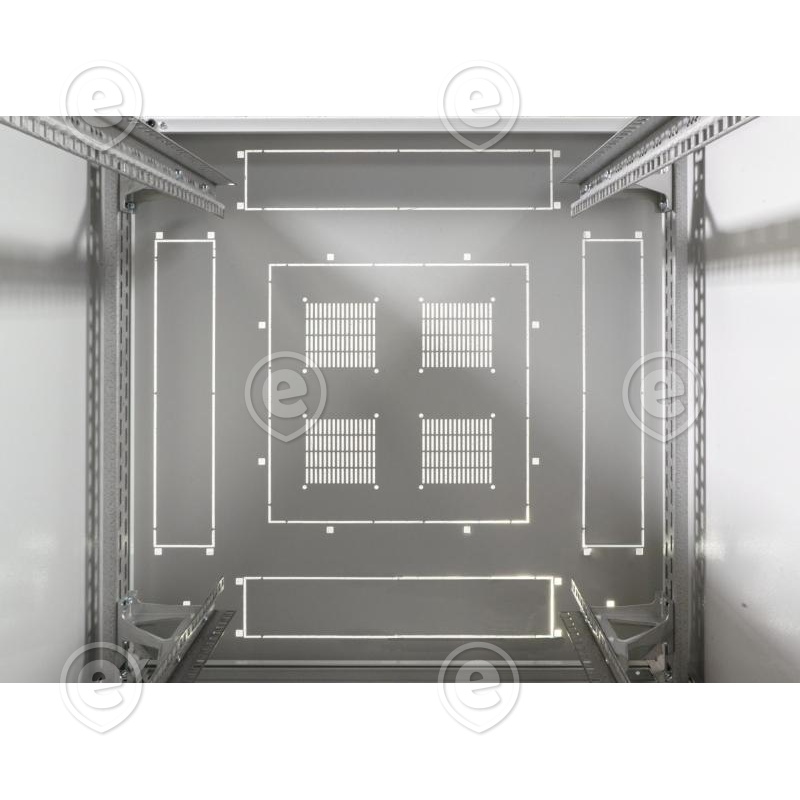

Roof and bottom with 4/6 pre-punched openings for cable entry (450 x 90 mm), for 600 mm cabinet width cable entry only rear
Roof prepared for accommodation of 2-fan or 4-fan units, bottom with pre-punched opening for filter or cable entry modules
Internal earthing of all cabinet sections

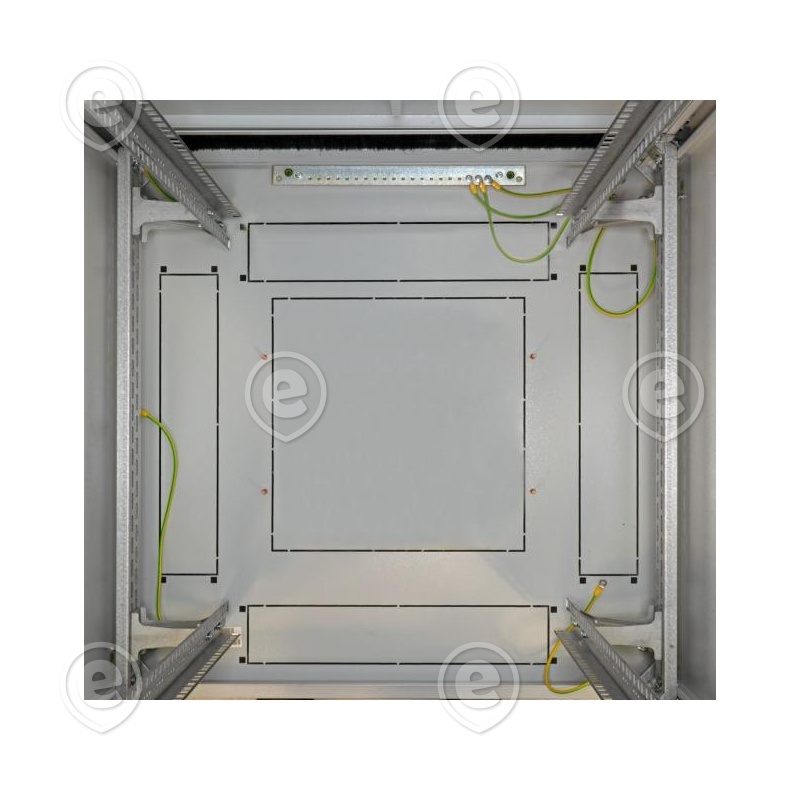

Pre-assembled earthing bar rear-sided in the middle of the cabinet (ports: 2 x M5 + 2 x 8 mm)
Max. load 1000 kg (depths 600 / 800 mm) resp. 1360 kg (depths 1000 / 1200 mm for >24U)
Paint finish RAL7035, light grey / RAL9005, jet black
Protection degree IP20
Included accessories: 1 x brush, earthing bar pre-installed, 4 x levelling feet M12, 2 x key
Delivery in transport packaging on disposable pallet

PRODUCT FEATURES

  • Type of front door
  • Without
  • Type of back door
  • Without
  • Mounting level
  • Front and rear
  • Model
  • With permanent frame
  • Modular spacing
  • 482,6 mm (19 inch)
  • Type of profile rail
  • Crank
  • Type of ventilation
  • Passive
  • With roof plate
  • True
  • With earthing
  • True
  • With front door
  • False
  • With backside door
  • False
  • With sidewall
  • False
  • With socket
  • False
  • Material
  • Steel
  • Surface finishing
  • With powder coating
  • Degree of protection (IP)
  • IP20
  • Demountable
  • True
  •
  •

Max load 1000kg
Height Rack Unit 42RU
Depth 800mm
Color Grey
