KP1200 Elite 1D and 2D Barcode Reader

SKU: KP1200
EAN: 655222934918
Brand: Kaptur
Unit: tk
Qty: Out of Stock
Price: 151,28 €
tk
 Add to cart

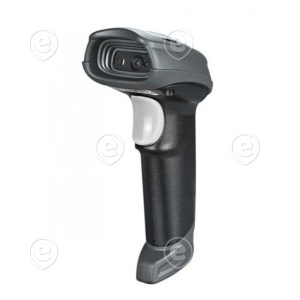

KP1200 Elite
The KP1200 elite is equipped with a 1280 x 800 CMOS sensor, which makes this barcode reader one of the fastest and most accurate reading devices on the market. KP1200 elite can read 1D and 2D codes with ease, even if the codes are bent, damaged or covered with cellophane. KP1200 elite is ideal for reading codes directly from phone screens. The white additional lighting and the green pointer offer comfortable and appropriate scanning experiences. The elegant and ergonomic design makes the KP1200 elite the ideal product for retail and healthcare applications. It can withstand several drops from a height of 1.80 meters, so that it can also be used in special environments such as the warehouse.

Main features

Physical Properties
Dimensions: Height 90 mm, Width 62.8 mm, Depth 153 mm
Weight: 132 g, without cable
Cable: Removable connection cable 1.0 m
Connection: RJ -45 telephone socket connection
Housing material: PC + TPU
Display: beeper, LED

Data transfer
Supported interface: USB keyboard, virtual USB data transfer , RS-232, (optional)

Performance
Operating mode: Handheld barcode scanner, intuitive scanning
Programming method: Manual (recognition of special barcodes)
Firmware update : Supports
Input voltage: USB 5 ± 0.25VDC
Current: Standby: 160mA Scanning: 300 mA (Max: 480 mA)
Image size: 1280 x 800 pixels
Light source: Lighting: 5000 K, white LED target direction: 525 nm peak wavelength, green LED
Field of view: Horizontal: 41 °, vertically ht: 28 °
Scan angle: ± 70 °, ± 75 °, 360 ° (inclination, distance, rolled)
Print contrast: 20% minimum reflection difference
Minimum resolution: SR : 1D (Code 128) : 4mil < br>
Decoding depth:
4mil Code39 (9 characters) 30 mm - 90 mm
5 mil Code39 (3 characters) 20 mm - 12 0mm
13 mil UPC (6 characters) 0 mm - 280 mm
20 mil Code39 (1 character) 15 mm - 430 mm
6.7 mil PDF417 (20 characters) 15 mm - 120 mm
10 mil QR (20 characters) 0 mm - 165 mm
10 mil DM ( 20 characters) 0 mm - 165 mm
20 mil QR (20 characters) 0 mm - 340 mm

Data acquisition
Decoding capability 1D: UPC-A, UPC -E, UPC-E1, EAN-13, EAN-8, ISBN (Bookland EAN), ISSN, Code 39, Full ASCII Code 39, Code 32, Trioptic Code 39, Interleaved 2 of 5, Industrial 2 of 5 (Discrete 2 of 5), Matrix 2 of 5, Codabar (NW7), Code 128, UCC / EAN 128, ISBT 128, Code 93, Code 11 (USD-8), MSI / Plessey, UK / Plessey, China Post, China Finance, Telepen, GS1 DataBar (formerly RSS) variants

Decoding capability 2D: PDF417, QR code , DataMatrix, Han-Xin-Code, Aztec-Code, MicroQR-Code, MicroPDF417

Environmental influences
Temperature: Operation 10 ° to + 50 ° C Storage -20 ° to + 70 ° C
Humidity: 5% to 95% (non-condensing)
Waterproof: IP52
Safety: EMC: EN55022, EN55024
Electrical safety: EN60950
Drop resistance: Multiple drops 1, 2 m
