2D Image Barcode Scanner

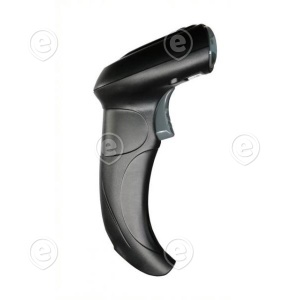

KP2201 2D IMAGER
The KP2201 is a high quality 2D image scanner. The device uses third generation image scanning technology to make scanning more sensitive and therefore more accurate. It can be used in different types of applications and environments, both 2D and 1D barcode applications. The KP2201 can scan in all directions, regardless of whether the barcode on the label / display is damaged or of poor quality.

Main features

Physical characteristics
Dimensions: height 99 mm, width 60 mm, depth 170 mm
Weight: 165 g
Cable: connection cable 1.5 m
Housing material: ABS + TPU
Display: beeper, LED

Data transfer
Supported interface: USB keyboard, virtual USB data transfer, RS-232 (optional)

Power
Operating mode: handheld barcode scanner, intuitive scanning
Programming method: manual (recognition of special barcodes)
Input voltage: USB 5 ± 0.25VDC
Current: Standby: 10mA Scanning: 190mA
Sensor: image area (640 x 480 pixel field 256 gray levels)
Scan angle: ± 75 °, ± 65 °, ± 360 ° (inclination, distance, rolled)
Print contrast: 30% minimum reflection difference
Light source: Illumination: 6500K white LED alignment LED (617nm ± 10nm)

Decoding depth
Min barcode width
5mil code 128 15-79mm
10mil QR Code 7-83mm
13mil EAN 13 35-225mm
20mil code 128 15-172mm
50mil code 128 80-520mm

Data acquisition
Decoding ability 1D: UPC / EAN, UPC / EAN with additions, Bookland EAN, ISSN, UCC Coupon Extended Code, Code 128, GS1-128, ISBT 128, Code 39, Code 39 Full ASCII, Trioptic Code 39, Code 32, Code 93 , Code 11, Matrix 2 of 5, Interleaved 2 of 5, Discrete 2 of 5, Codabar, MSI, Chinese 2 of 5, GS1 DataBar variants, Korean 3 of 5, ISBT Concat

Decoding capability 2D: PDF417, MicroPDF417, QR Code, DataMatrix, Han Xin Code, Aztec Code, MicroQR Code,

Environmental influences
Temperature: Operation -5 ° to + 65 ° C, storage -20 ° to + 70 ° C
Humidity: 5% to 90% (non-condensing)
Waterproof: IP52
Safety: EMC: EN55022, EN55024
Electrical safety: EN62471
RF immunity: IEC61000-4-3, 10V / m
Drop resistance: multiple drops 2 mKP1102 ADVANCED 1D
The KP1102 Advanced 1D laser supports standard RS-232 / USB / PS2 interfaces. Due to its compact design and good performance, the barcode scanner is very well suited for applications in supermarkets, shopping centers and logistics.

Main features

Physical properties
Dimensions: height 76 mm, width 67 mm, depth 168 mm
Weight: 120 g, without cable
Cable: Detachable connection cable 1.6 m
Connection: RJ-45 telephone socket connection < br> Housing material: ABS
display: beeper, LED

Data transfer
Supported interfaces: USB keyboard,
virtual USB data transfer,
RS-232, (optional)

Performance
Operating mode: Handheld barcode scanner, intuitive scanning
Programming method: Manual (recognition of special barcodes)
Firmware update: Supports
Input voltage: USB 5 ± 0.25VDC
Current: standby: 30mA scanning: 170 mA
Light source: 645-660 nm laser diode
Scanning angle: ± 60 °, ± 65 °, 42 ° ( Inclination, distance, rolled)
Print contrast: 25% minimum reflection underc hied
Decoding depth:
3 mil 27 mm –65 mm
4 mil 27 mm –60 mm
5 mil 18 mm –132 mm
10 mil 10 mm –320 mm
13 16 mm –380 mm
15 mm 13 mm –500 mm
20 mm 19 mm –620 mm
30 mm 25 mm –770 mm

Data acquisition
Decoding ability 1D: UPC-A, UPC-E, UPC-E1, EAN-13, EAN-8, ISBN (Bookland EAN), ISSN, Code 39, Full ASCII Code 39, Code 32, Trioptic Code 39, Interleaved 2 of 5, Industrial 2 of 5 (Discrete 2 of 5), Matrix 2 of 5, Codabar (NW7), Code 128, UCC / EAN 128, ISBT 128, Code 93, Code 11 (USD-8), MSI / Plessey , UK / Plessey, China Post, China Finance, Telepen, GS1 DataBar (formerly RSS) variants

Environmental influences
Temperature: Operation 0 ° to + 60 ° C
Storage: -40 ° to + 60 ° C
Humidity: 5% to 95% (non-condensing)
Waterproof: IP50
Safety: Laser Safety: EN60825-1 Class 1
EMC: EN55022, EN55024
Electrical Safety: EN60950-1
Depth of fall: Multiple drops from 4.0 m onto concrete
