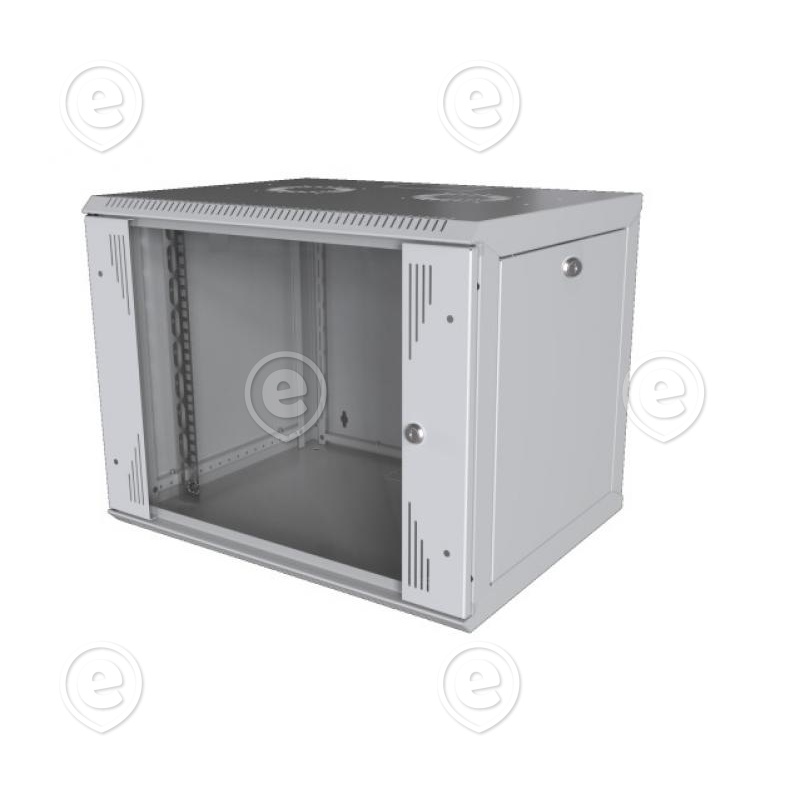

19" Wall Housing 20U, Fixed, 1-Part, RAL7035, Depth 600 mm

SKU: EFB791720VGR.60
Unit: tk
Qty: Out of Stock
Price: 302,56 €
 Add to cart


Steel sheet housing with screwed frame, completely pre-assembled, self-ventilated
Prepared for Plug & Play 2-fan unit Art.-No. 691656xx
Side walls removable, lockable, locks equal to door lock
Roof and bottom with pre-punched openings for cable entry (145 x 70 mm)
Also suitable fpr use of 2 x single fans in roof
Inside front and rear 4 x 19“ profile rails, galvanised, depth-adjustable
Front door with latch locking and window made of certified safety glass (thickness 4 mm)
Internal earthing of all cabinet sections
Paint finish RAL7035, light grey
Protection degree IP20
Included in delivery: 1 x brush terminal, earthing cables, 2 x key
Delivery in transport packaging


  • Mounting level
  • Front side
  • Type of profile rail
  • L-shaped
  • With roof plate
  • True
  • With sidewall
  • True
  • Demountable
  • True
  • Material
  • steel
  • Surface finishing
  • powder coating
  • Degree of protection (IP)
  • IP20
  • Number of doors
  • 1
  • Number of cartons
  • 1
Height Rack Unit 20RU
Depth 600mm
Color Grey
