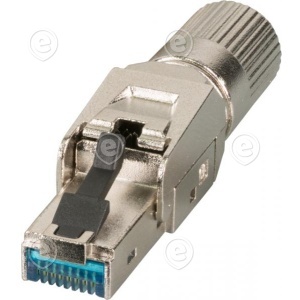

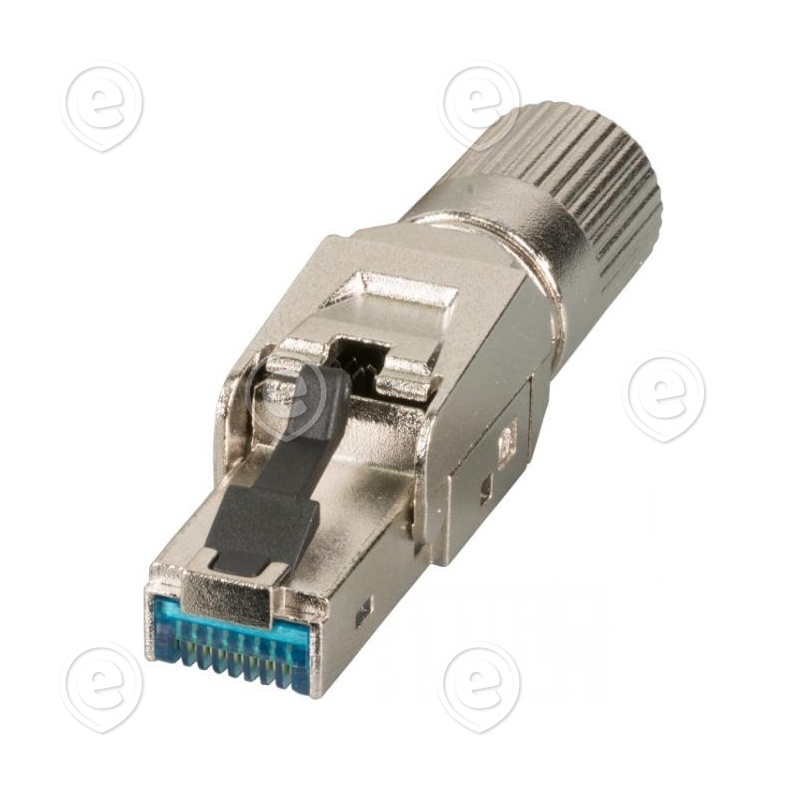

Modularpistik RJ45 CAT6A STP , 9 erinevat nurga asetust
Tootekood:
88035P8.1
EAN:
4049759205027
Kaubamärk:
Ühik:
tk
Laoseis:
1
3,76 €
9,41 €
ARTICLE INFORMATION

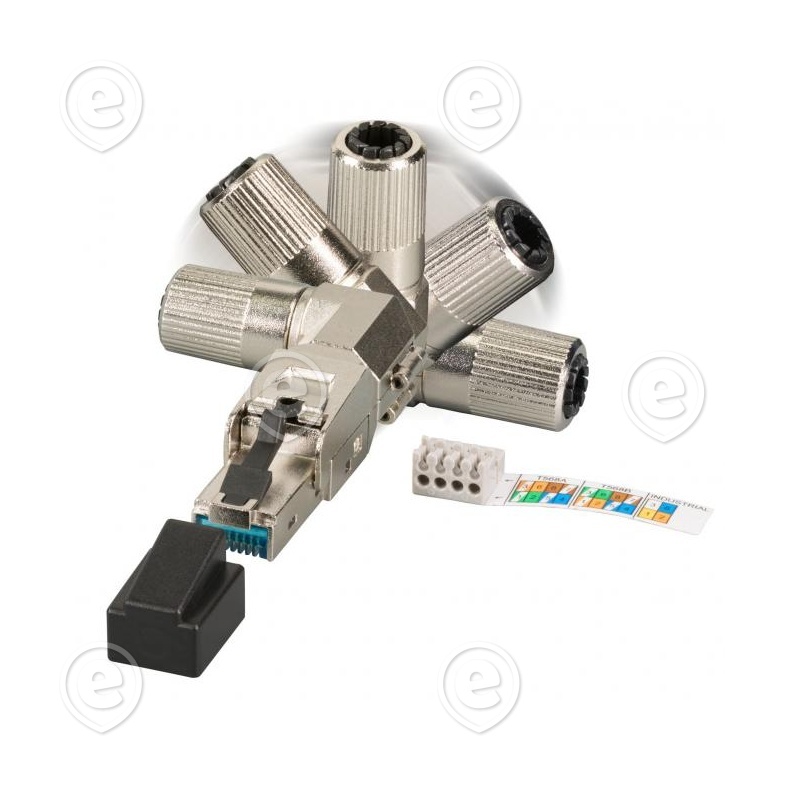

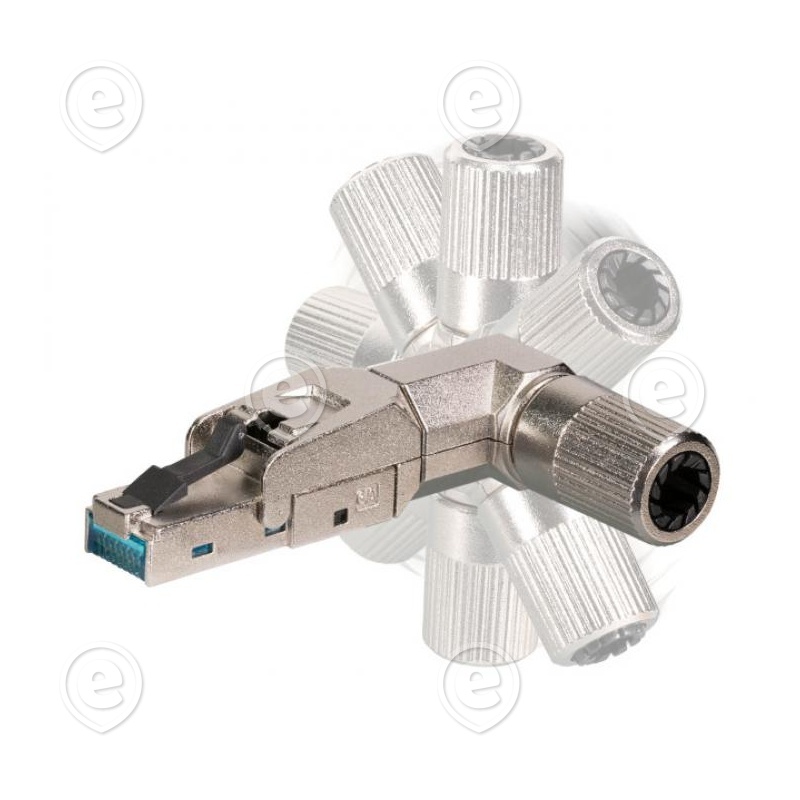

The Cat. 6A Premium RJ45 is a highlight in the chain of further development of RJ45 connectors for field assembly. An extraordinarily robust full metal housing made of zinc die-casting paired with the unique variable cable feed opens up a wide range of application possibilities. Installation can be done in 9 different positions: 8 different angled positions and a 180° straight cable entry. The conical metal cable gland allows cable diameters from 6.0mm to 9.0mm. The connector meets the requirements of transmission class Cat. 6A/Class EA and supports the Ethernet protocol up to 10 Gigabit per second.PRODUCT FEATURES
- Category
- 6A (IEC)
- Model
- jack (jack)
- Connection type
- Schneidklemm
- Type of connector
- RJ45 8(8)
- Screened
- True
- AWG-range for litz wire conductor
- 22 – 27
- AWG-range
- 22 – 26
- Special tool necessary
- No
- Suitable for round cable
- yes
- Suitable for flat cable
- No
- Suitable for litz wire conductor
- yes
- Suitable for solid core
- yes
- Housing material
- Zinc die cast
- Complaint to UL94
- V-0
- Max. cable diameter
- 9.0 mm
- Mating cycles
- 750
- Contact coating
- 50 µ"
- Dielectric Withstanding Voltage
- 1000 V DC
- Current Rating
- 2 A
- Insulation Resistance
- 500 MΩ
- Contact Resistance
- 20 mΩ
- 4PPOE certified
- yes
