ARTICLE INFORMATION

The INFRALAN IKS-6A-KOP-12 Keystone Module offers the combination of very good transmission characteristics and simple tool-free assembly.
The module's high processing quality has been proven millions of times over, a secure Cat. 6A component of the cabling system for applications up to 10 Gigabit Ethernet.
Special tools are not required, the installation is easy and handy.
Fully shielded zinc die-cast Keystone housing with separate dust protection cap
Cat. 6A component certification according to ANSI/TIA-568-C. 2 and ISO/IEC 11801 and IEC 60607-7-51
Compact wire pre-sorting unit for AWG24/1... AWG22/1
Pair management according to TIA/EIA 568 A/B color codes
PoE and PoE Plus according to IEEE802.3af/at/bt
Suitable for distribution panel and support rings with keystone cut-out, exclusive
UAE
Strain relief by cable ties

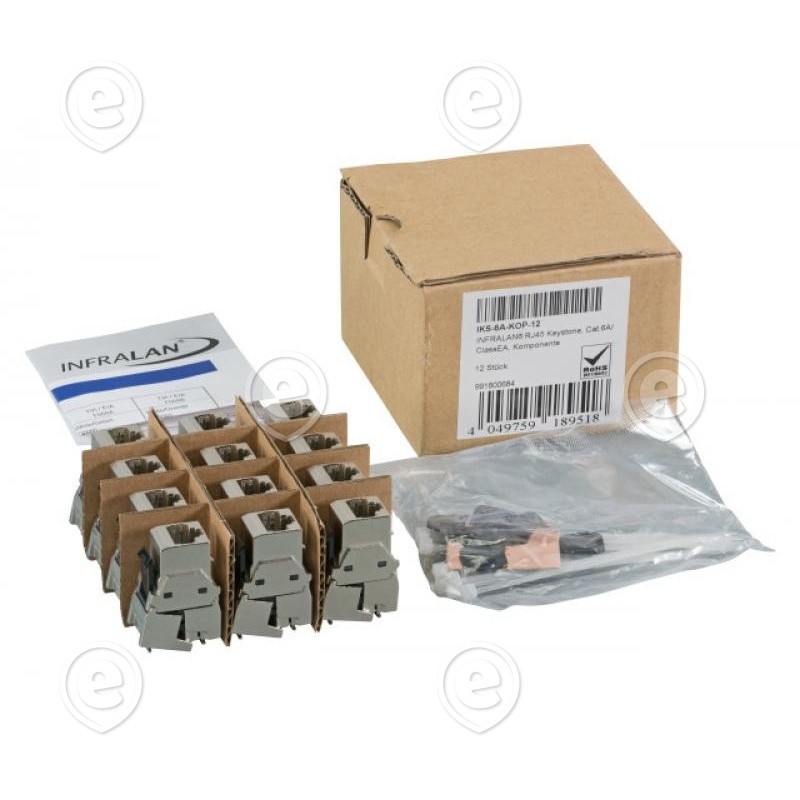

Scope of delivery:
1 x RJ45 keystone, Cable coder (Black: AWG22-AWG24; Grey: AWG24-AWG26),1 x copper foil, 1 x cable tie, dust cover, mounting instruction
