Kaup laos
Jätkukiud MM LC 50/125 2,0m OM4
Tootekood:
O3686.2
EAN:
4049759023195
Kaubamärk:
Pikkus:
2,0m
Standard:
OM4
Tüüp:
UPC
Värv:
Lilla
Ühik:
tk
Laoseis:
11
2,28 €
ARTICLE INFORMATION

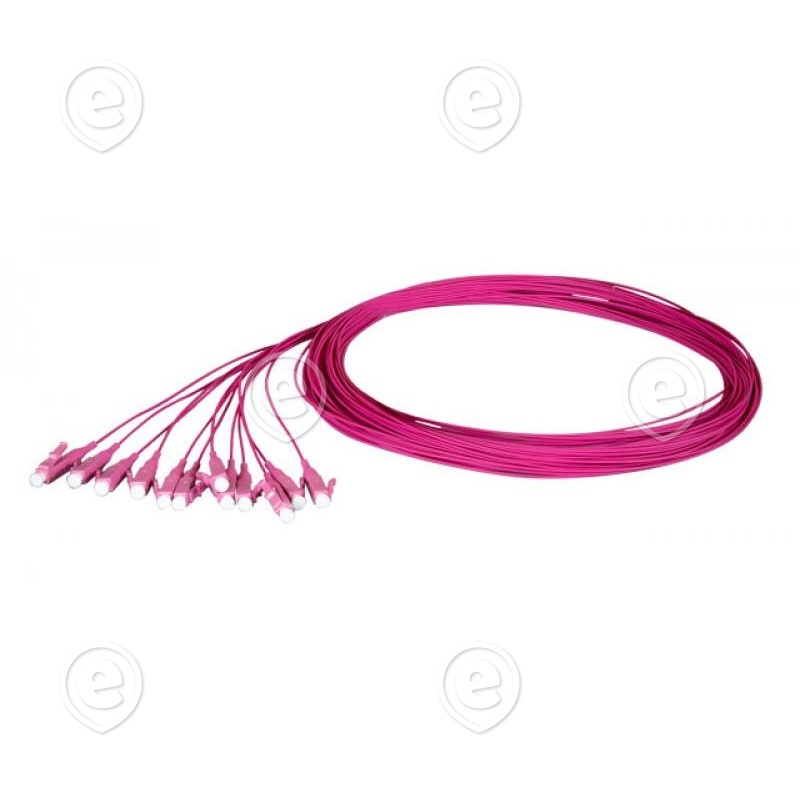

The LC fiber pigtail has a primary coating (900µ) in the colour of the respective category (see table). The colour of the primary coating is equal to the colour of the secondary coating. A numeric connector coding 1 .. 12 simplifies the allocation of the ports. The pigtails can be ordered separately. Because the standard batch size for ordering pigtails is 12, in a polybag are 12 pigtails. Each connector is packed separatly for an easy remove of each pigtail. Every PU contains an individual measuring protocol.PRODUCT FEATURES
- Type
- fiber pigtail
- Core type
- semi-tight tubes
- Anti-kink sleeve
- put-on
- Max. Tension
- 3 N
- Mion. Bending Radius Static
- 10xOD
- Minimaler Biegeradius Dynamic
- 20xOD
- Outer Diameter
- 0.9 mm
- Jacket Material
- LSZH
- Length
- 2.0 m
- Operating Temperature
- -20 – 70 °C
- Connector Conform to Standard
- IEC61754-20
- Cable Conform to Standard
- IEC60793-2
