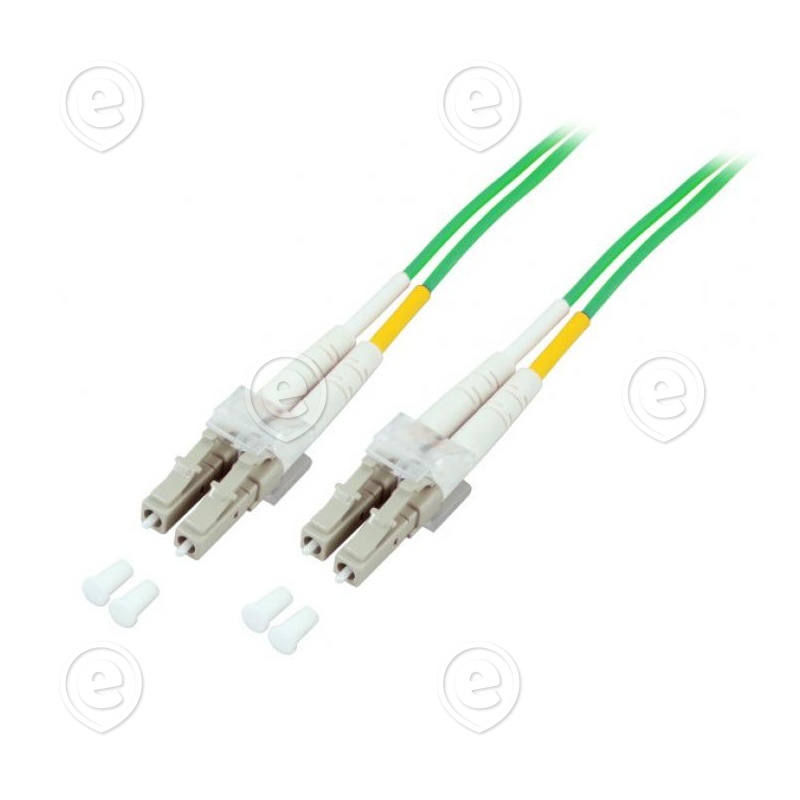

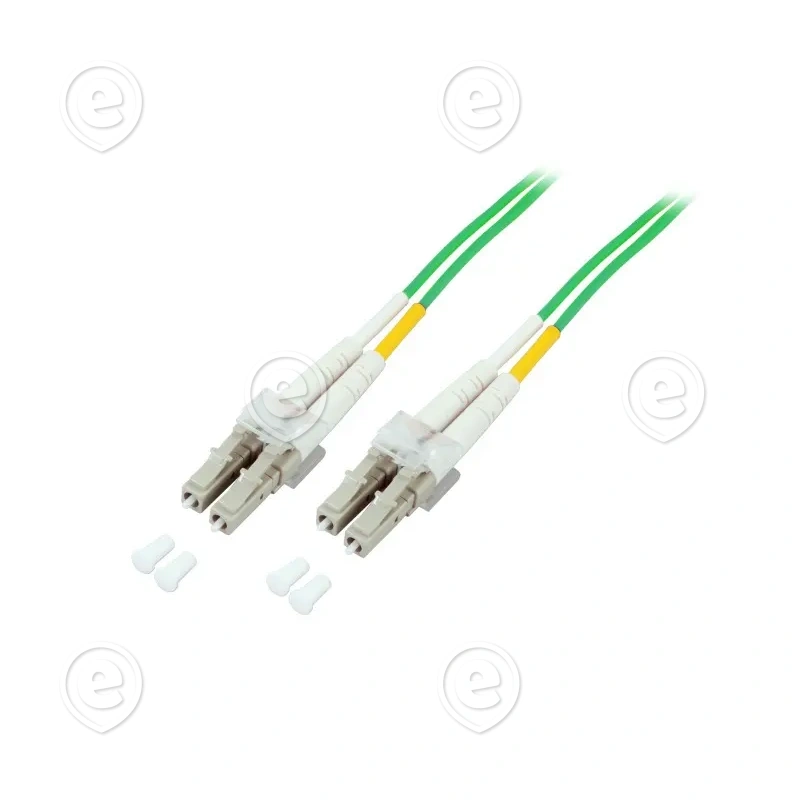

Jätkukaabel MM LC/LC duplex 2x50/125 OM5 15,0m

Jätkukaabel MM LC/LC duplex 2x50/125 OM5 15,0m

Tootekood: EFBO0319.15OM5
EAN: 4049759178420
Kaubamärk:
Ühik: tk
Laoseis: Laos
Hind: 54,94 €
tk
 Lisa korvi

ARTICLE INFORMATION

Fiber jumper are well defined components in international standard of structured cabling ISO/IEC11801.
Due to many different network protocols created in the last 25 years , also a wide range of connectors had been developed. Some of them are still important today: LC, SC, E2000®, MPO/MTP.

Fiber jumper (patchcord) are defined as shortest connection between passive interface and active deviceport, regarding structured cabling standard. Rating of performance, known as category, as well as performance of total transmission channel, known as link class,Similar descriptions for patchcords: Connection cable, drop cable, adapter cable, interconnecting cord, Jumper

Features of EFB fiber optic patch cables
Tension relief reinforced with aramid yarn
Halogen-free and flame-retardant sheath according to IEC-60754-2, IEC-60332-1 and IEC-61034
EFB fiber optic connectors meet the minimum quality class Grade B/2 according to IEC-61753-1 for singlemode and Grade A/1 for multimode according to IEC 61753-122-2 (UPC cut)
100% tested and with individual measurement report

PRODUCT FEATURES

Fibre type

Multimode 50/125

Category

OM5

Bend optimized fiber

OM5 acc. to IEC60793-2-10 type A1a.4

Number of fibres

2

Anti-kink sleeve

put-on

Type of connector connection 1

LC-Duplex

Connector colour 1

beige

Type of connector connection 2

LC-Duplex

Connector colour 2

beige

Max. Tension

160 N

Min. Bending radius (Static)

10xOD

Min. Bending radius (Dynamic)

20xOD

Cable type

Simplex

Cable Construction

Duplex

Cable Ø

2.0 mm

Colour outer sheath

lime green

Jacket Material

LSZH

Flame retardant

According to EN 50265-2-1

Halogen free

acc. IEC60754-1

Low smoke

acc. IEC61034-1

Operating Temperature

-20 – 70 °C

Storage Temperature

-20 – 85 °C

Insertion loss 850nm

<0.2 dB

Quality class multimode

A/1 according to IEC-61753-222-2

Connector Conform to Standard

IEC 61754-20

Cable Conform to Standard

IEC 60793-2

































































































































































Pistikute valik LC(UPC)-LC(UPC)
Kiudude arv 2
Pikkus 15,0m
Standard OM5
Tüüp UPC
Värv Roheline
