EAN koodi Basic scänner 1D
Hind:
47,23 €

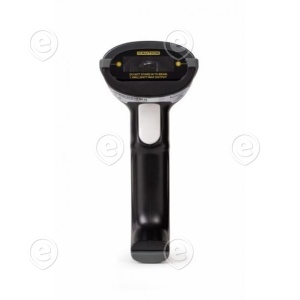

KP3103 Basic 1D
Designed as an entry-level 1D barcode scanner, the KP3103 is an excellent solution for everyday use. Simple and convenient to use, the device can withstand drops and bumps, making it a reliable investment. KP3103 is intuitive to use and requires little or no setup to use. From the moment it is unpacked, operators can use the device comfortably all day long thanks to its light weight, speed and ease of use.
Main features
Physical characteristics
Dimensions: height 76 mm, width 67 mm, depth 168 mm
Weight: 120 g, without cable
Cable: Detachable connection cable 1.6 m
Connection: RJ-45 telephone jack connection
Housing material: ABS
Display: beeper, LED
Data transfer
Supported interface: USB keyboard, virtual USB data transfer RS-232, (optional)
Power
Operating mode: handheld barcode scanner, intuitive scanning
Programming method: manual (recognition of special barcodes)
Firmware update: Supported
Input voltage: USB 5 ± 0.25VDC
Current: Standby: 30mA Scanning :: 170mA
Light source: 645-660nm laser diode
Scan angle: ± 60 °, ± 65 °, ± 42 ° (inclination, distance, rolled)
Print contrast: 25% minimum reflection difference
Decoding depth
3 mil 27mm -65mm
4 mil 27mm -60mm
5 mils 18mm -132mm
10 mils 10mm -320mm
13 mil 16mm -380mm
15 mil 13mm -500mm
20 mil 19mm -620mm
30 mil 25mm -770mm
Data acquisition
Decoding ability 1D: UPC-A, UPC-E, UPC-E1, EAN-13, EAN-8, ISBN (Bookland EAN), ISSN, Code 39, Full ASCII Code 39, Code 32, Trioptic Code 39, Interleaved 2 of 5 , Industrial 2 of 5 (Discrete 2 of 5), Matrix 2 of 5, Codabar (NW7), Code 128, UCC / EAN 128, ISBT 128, Code 93, Code 11 (USD-8), MSI / Plessey, UK / Plessey, China Post, China Finance, Telepen, GS1 DataBar (formerly RSS) variants
Environmental influences
Temperature: Operation 0 ° to 50 ° C, Storage -40 ° to 60 ° C
Humidity: 5% to 95% (non-condensing)
Waterproof: IP50
Safety
Laser safety: EN60825-1 Class 1 EMC: EN55022, EN55024 Electrica
Designed as an entry-level 1D barcode scanner, the KP3103 is an excellent solution for everyday use. Simple and convenient to use, the device can withstand drops and bumps, making it a reliable investment. KP3103 is intuitive to use and requires little or no setup to use. From the moment it is unpacked, operators can use the device comfortably all day long thanks to its light weight, speed and ease of use.
Main features
Physical characteristics
Dimensions: height 76 mm, width 67 mm, depth 168 mm
Weight: 120 g, without cable
Cable: Detachable connection cable 1.6 m
Connection: RJ-45 telephone jack connection
Housing material: ABS
Display: beeper, LED
Data transfer
Supported interface: USB keyboard, virtual USB data transfer RS-232, (optional)
Power
Operating mode: handheld barcode scanner, intuitive scanning
Programming method: manual (recognition of special barcodes)
Firmware update: Supported
Input voltage: USB 5 ± 0.25VDC
Current: Standby: 30mA Scanning :: 170mA
Light source: 645-660nm laser diode
Scan angle: ± 60 °, ± 65 °, ± 42 ° (inclination, distance, rolled)
Print contrast: 25% minimum reflection difference
Decoding depth
3 mil 27mm -65mm
4 mil 27mm -60mm
5 mils 18mm -132mm
10 mils 10mm -320mm
13 mil 16mm -380mm
15 mil 13mm -500mm
20 mil 19mm -620mm
30 mil 25mm -770mm
Data acquisition
Decoding ability 1D: UPC-A, UPC-E, UPC-E1, EAN-13, EAN-8, ISBN (Bookland EAN), ISSN, Code 39, Full ASCII Code 39, Code 32, Trioptic Code 39, Interleaved 2 of 5 , Industrial 2 of 5 (Discrete 2 of 5), Matrix 2 of 5, Codabar (NW7), Code 128, UCC / EAN 128, ISBT 128, Code 93, Code 11 (USD-8), MSI / Plessey, UK / Plessey, China Post, China Finance, Telepen, GS1 DataBar (formerly RSS) variants
Environmental influences
Temperature: Operation 0 ° to 50 ° C, Storage -40 ° to 60 ° C
Humidity: 5% to 95% (non-condensing)
Waterproof: IP50
Safety
Laser safety: EN60825-1 Class 1 EMC: EN55022, EN55024 Electrica
