19" 3U DIN liistu alus 22-le moodulile 17.5 mm, RAL9005 @ ankaran







19" 3U DIN liistu alus 22-le moodulile 17.5 mm, RAL9005

Tootekood: 691277TS.1V2

EAN: 4049759213558

Kaubamärk:

Ühik: tk

Laoseis: Tarneaeg 5-30 päeva.

38,58 €

Võrdle

ARTICLE INFORMATION

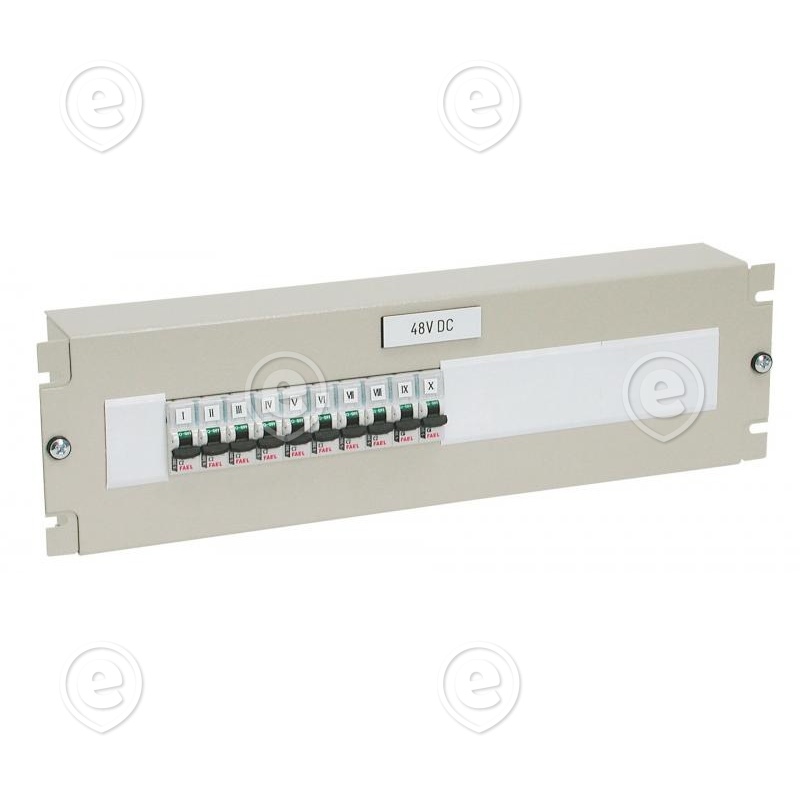

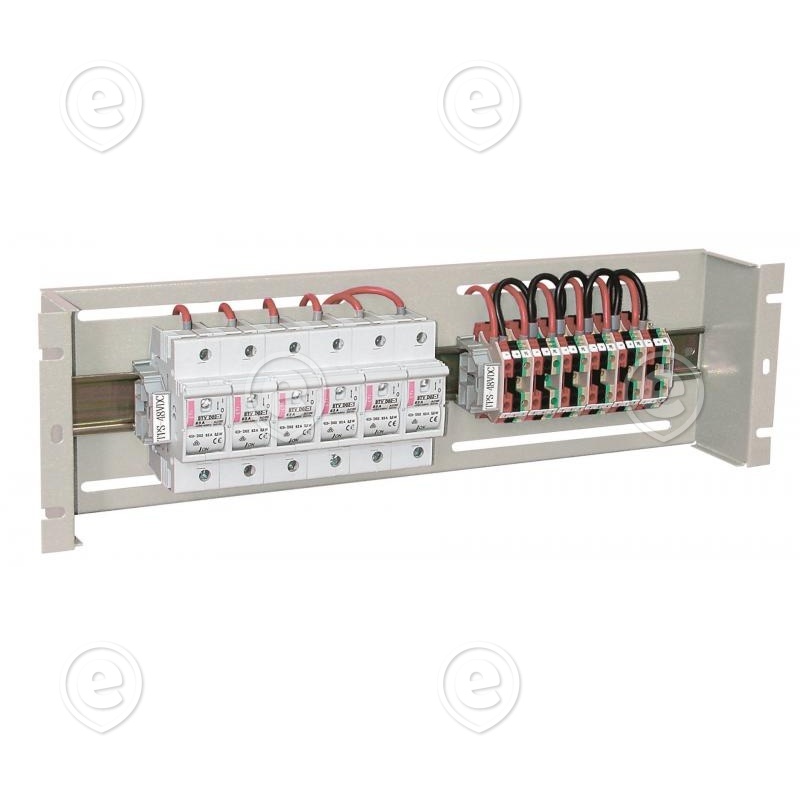

For carrying DIN rail modules like circuit breakers, outlets etc.
Capacity 22 modules to 17.5 mm
Front opening 402.5 x 45.5 mm

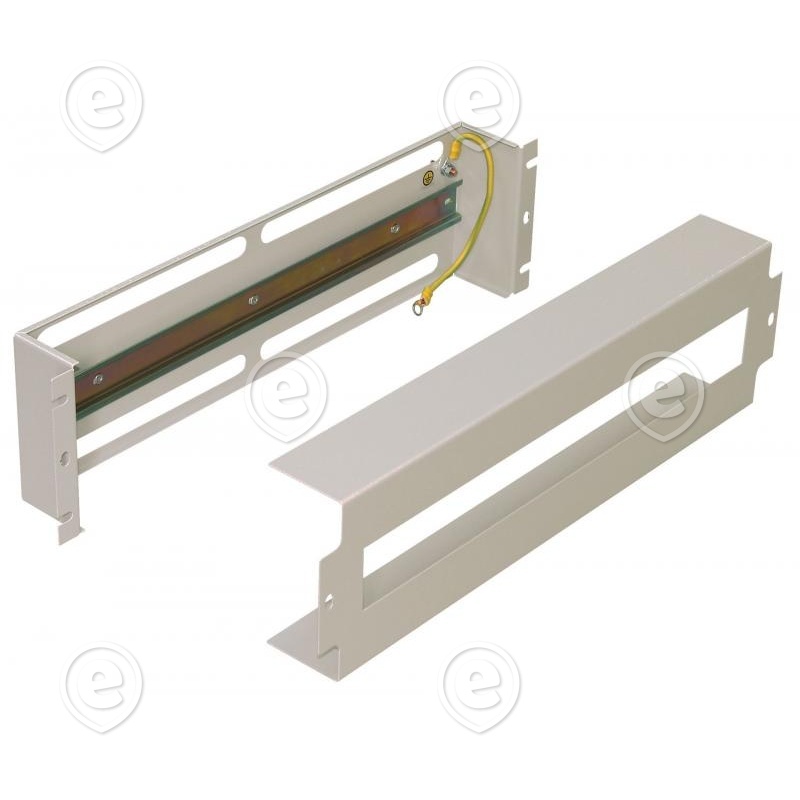

Rear-sided earthing bolt M5 incl. cable
Dimensions (W x H x D) 482.6 x 133 x 60 mm
Material steel sheet
Paint finish RAL7035, light grey / RAL9005, jet black
Mounting note: For easy opening and closing of the front cover, a captive nut M6 should be installed behind the left & right cover screw.
