ARTICLE INFORMATION

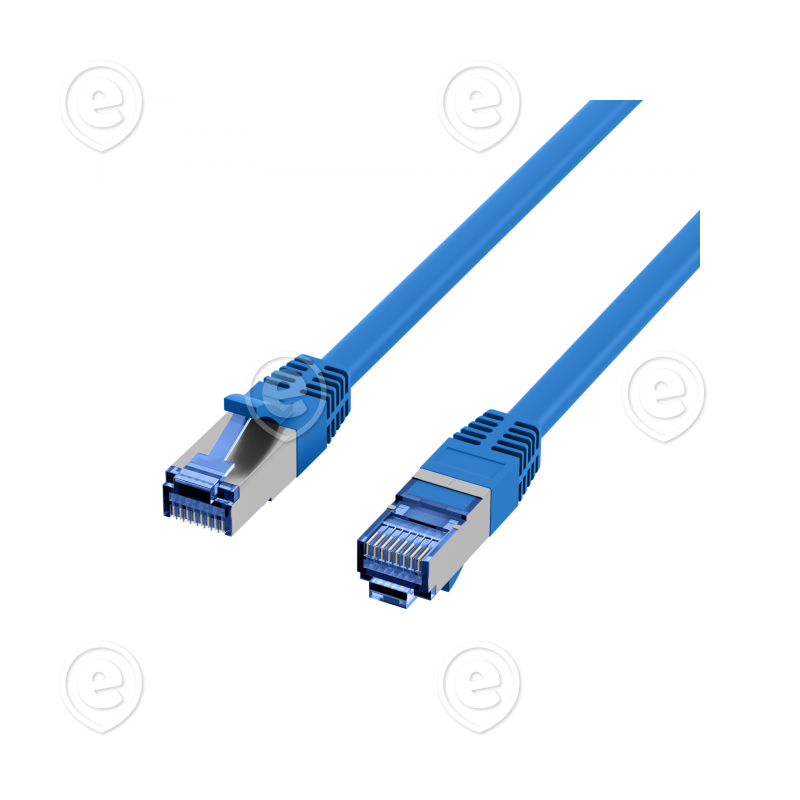

The shielded Cat.6A RJ45 patch cable with component certification from the GHMT ensures excellent performance for 10 Gigabit Ethernet applications. The TPE outer sheath makes the cable highly flexible and thus easier to handle. The moulded grommet captivates with its slim design and thus simplifies the insertion process in cramped conditions.

Very flexible TPE/LSZH outer sheath superflex
Cross section 4 x 2 x AWG26 / 7
Moulded grommet, slim design
Length imprint on the boot

PRODUCT FEATURES

Colour outer sheath

blue

Area of Application

Structured cabling;Industrial Ethernet;Data center

Category

6A (IEC)

Type of connector connection 1

RJ45 8(8)

Type of connector connection 2

RJ45 8(8)

Connector type

RJ45 Standard blue

Contacts

50 µ" gold plated

Pin assignment

1:1

Allocation

acc. TIA/EIA 568B

Type

Shielded

Length imprint

yes

Anti-kink sleeve

plugged in

Colour anti-kink sleeve

blue

Locking lever

True

Mating cycles

2000

Bending radius

>32.5 mm

Conductive shield

360° shield contact

Suitable for degree of protection (IP)

IP20

Raw cable

Cat.7

Cable type

S/FTP

Cable construction

4x2

AWG-size

26/7

Conductor Material

Copper

Silicone-free

yes

Jacket material

TPE/LSZH

Printing

Cat.6A Patchcord SUPERFLEX S/FTP

Outer diameter of the cable

6.5 mm

Halogen-free

yes

Low smoke

acc. IEC61034

Temperature range

-20 – 75 °C

NVP value

- %

Impedance

100 ±25 Ω

Conductor resistance DC

142 Ω/km

Loop resistance

284 Ω/km

Resistance unbalance

2 %

Insulation resistance

100 MΩ

Contact resistance

30 mΩ

Test voltage

1000 V DC, 1min

POE class

PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt

Current capacity

max. 1 A

Operating-/ tempering voltage

max. 50 V DC

Bandwidth

500MHz

Transmission

10Gbit

Cabling Standard

ISO/IEC 11801;ANSI/TIA-568-C.2;EN50173

Connector

IEC 60603-7-51
