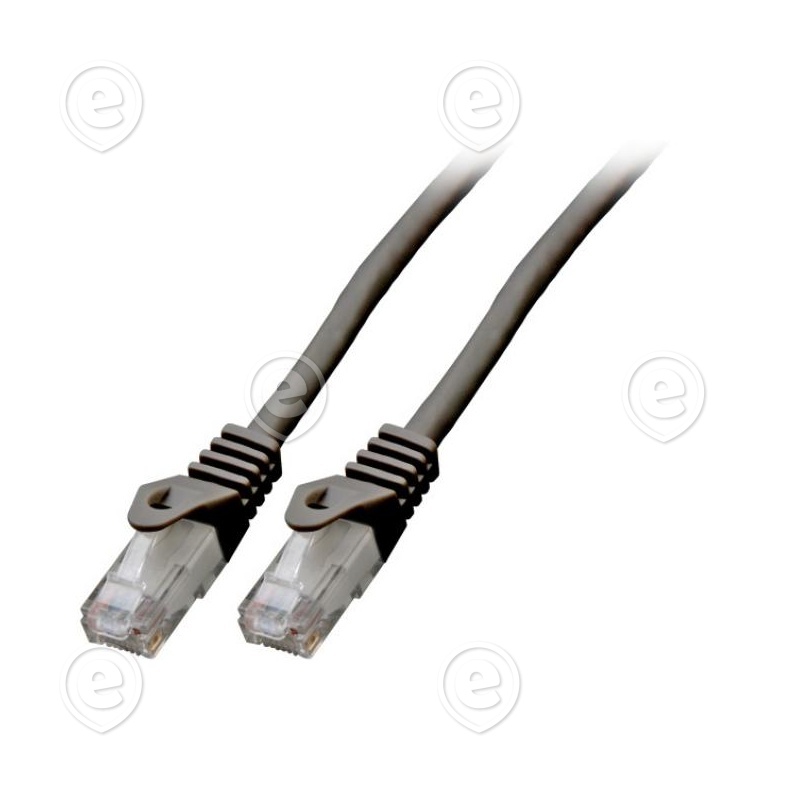

Vahekaabel CAT6 UTP, LSZH, 20,0m (must) / murdumiskaitsega
Tootekood:
K8104SW.20
EAN:
4049759115609
Kaubamärk:
Pikkus:
20,0m
Standard:
CAT6E
Tüüp:
UTP
Värv:
Must
Ühik:
tk
Laoseis:
Tarneaeg 5-30 päeva.
12,00 €
ARTICLE INFORMATION
The unshielded Cat.6 RJ45 patch cable with ensures excellent performance for 5 Gigabit Ethernet applications. The moulded grommet captivates with its slim design and thus simplifies the insertion process in cramped conditions.Cross section 4 x 2 x AWG24/7
Moulded grommet, slim design
Length imprint on the boot
PRODUCT FEATURES
- Colour outer sheath
- black
- Category
- 6
- Type of connector connection 1
- RJ45 8(8)
- Type of connector connection 2
- RJ45 8(8)
- Connector type
- RJ45 Standard
- Contacts
- Gold plated µ" gold plated
- Pin assignment
- 1:1
- Allocation
- acc. TIA/EIA 568B
- Type
- Unshielded
- Anti-kink sleeve
- plugged in
- Colour anti-kink sleeve
- black
- Locking lever
- yes
- Bending radius
- 30 mm
- Cable type
- U/UTP
- Cable construction
- 4x2
- AWG-size
- 24/7
- Conductor Material
- CCA
- Silicone-free
- yes
- Jacket material
- LSZH
- Printing
- Cat.6 U/UTP AWG24/7 stranded x 4pairs LSZH cable
- Outer diameter of the cable
- 5.9 mm
- Flame-retardant
- yes
- Halogen-free
- yes
- Low smoke
- yes
- NVP value
- - %
- POE class
- PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt
- Bandwidth
- 250MHz
- Transmission
- 5Gbit
- Connector
- IEC 60603-7-4
