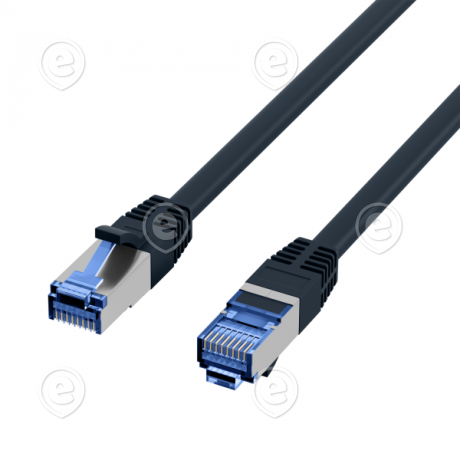

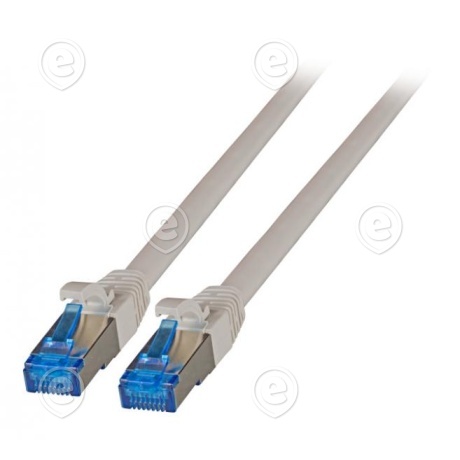

Highly flexible UltraFlex Cat.6A patch cable that enables significantly smaller bending radii compared to standard PVC and standard LSOH cables. Up to a minimum bending radius of 10 mm can be realised. Significantly longer durability compared to standard patch cables for applications in "motion" or frequent handling. The patch cable is UL listed; 3P and GHMT certificates are also available. Highlights UltraFlex Special Cable halogen-free (LSOH) UL listed Low bending radius and long durability ~8500 motion cycles under load Individual test report 3P and GHMT certified Plugs Type: 2x RJ45 8P8C Category: 6A Size: compact Contacts: 50μ gold plating Protection: yes Cable Inner conductors: 100% pure copper Category: 6A Structure: S/FTP (PiMF) 4x2x AWG: 26/7 Outer diameter: 6.2±0.2 mm Jacket material: UltraFlex LSOH UL: E499958 Technical Data / Tests Data Transmission: up to 10 Gbps, 500 MHz Power over Ethernet: PoE according to IEEE 802.3af; max. < 15.4 W PoE+ according to IEEE 802.3at; max. < 25.5 W TIA/EIA: 568B Motion cycles under load: ~8500 Bending radius: up to 10 mm (min.) Mating cycles: ≥1200 Temperature range: -20°C up to +80°C Channel test: 100% Cat.6A Fluke test report: individuell per patch cable Certificates: 3P, GHMT
