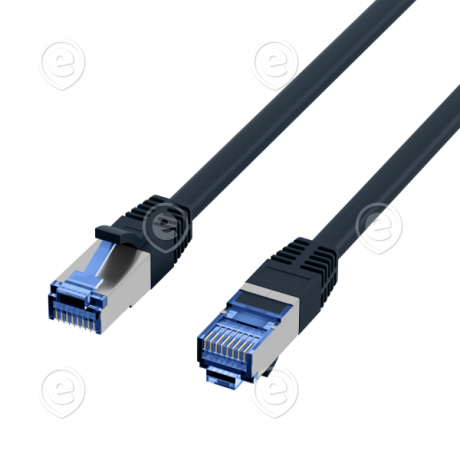

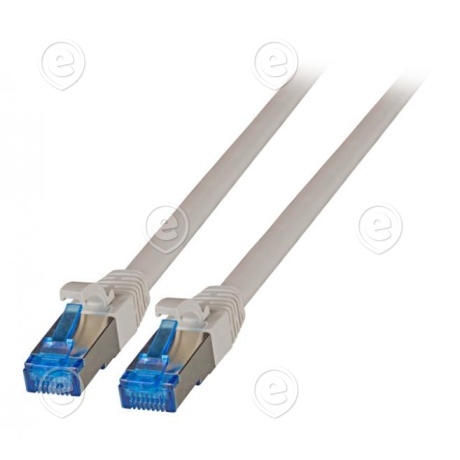

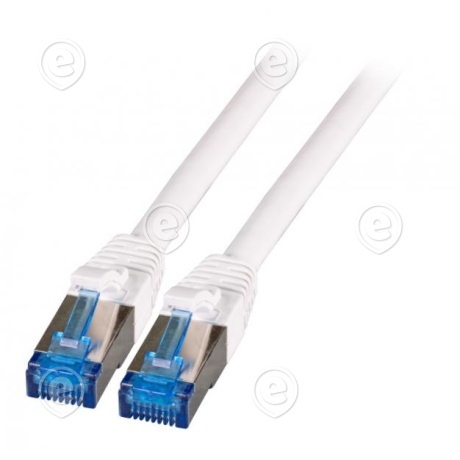

Highly flexible UltraFlex Cat.6A patch cable that enables significantly smaller bending radii compared to standard PVC and standard LSOH cables. Up to a minimum bending radius of 10 mm can be realised. Significantly longer durability compared to standard patch cables for applications in "motion" or frequent handling. Highlights UltraFlex Special Cable halogen-free (LSOH) Low bending radius and improved durability ~8500 motion cycles under load Plugs Type: 2x RJ45 Category: 6A Contacts: 50μ gold plating Protection: yes Cable Inner conductors: 100% pure copper Category: 6A Structure: S/FTP (PiMF) 4x2x AWG: 26/7 Outer diameter: 6.2±0.2 mm Jacket material: UltraFlex LSOH Technical Data / Tests Data transmission: up to 10 Gbps Power over Ethernet: PoE to IEEE 802.3af; max. < 15.4 W PoE+ to IEEE 802.3at; max. < 25.5 W Temperature range: -40°C up to +80°C Motion cycles under load: ~8500 Mating cycles: ≥1200 Bending radius: up to 10 mm (min.) Channel test: 100% Cat.6A
