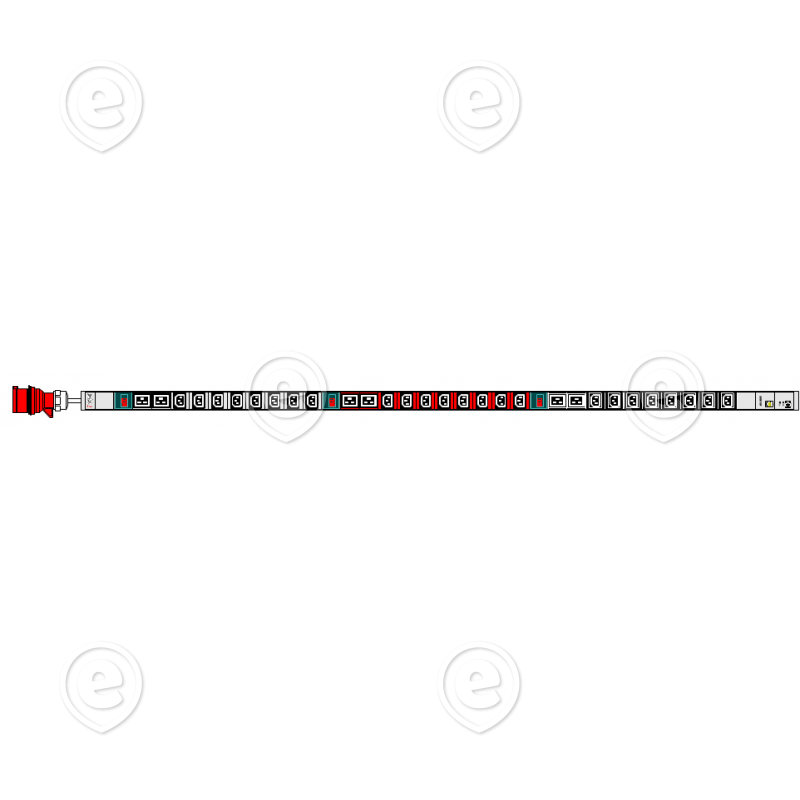

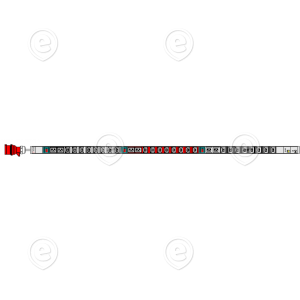

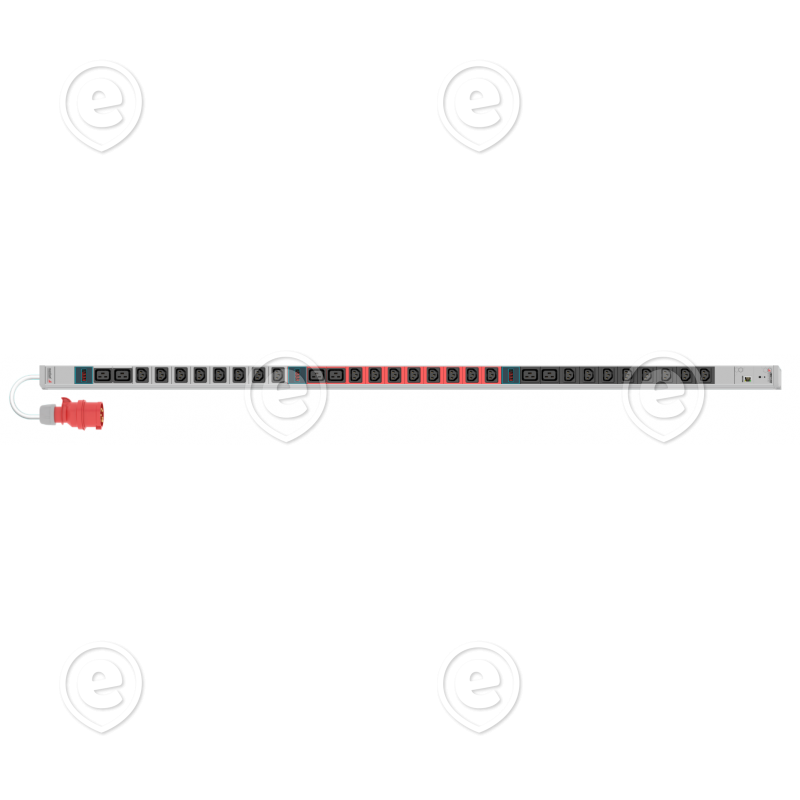

Toitesiin 3x16A 24XC13 + 6xC19 PIM funktsionaalsus, toitejuhe 3m koos pistikuga
Tootekood:
MXLR2ALQ63
Kaubamärk:
Ühik:
tk
Laoseis:
Tarneaeg 5-30 päeva.
712,35 €
24 x IEC320C13 sockets outlet max. 10A/230VAC
6 x IEC320C19 sockets outlet max. 16A/230VAC
Sockets are located in 3 blocks. Each block is supplied from other phase. Sockets are colour-coded by phase (black, red and grey).
Plastic elements colour: light-grey similar to RAL7035
Natural anodized aluminium body.
Dimensions without mounting brackets (WxHxD): 44x1635x46mm
Vertical mounting in 19" rack - 0U
Mounting brackets for installation in 4 orientations
3-meter supply cable H05VV-F.5G2,5mm² in white colour.
Supply cable terminated IEC60309 plug red 3-phase (3x16A/400V).
Maximum current 48A (11 040 W).
Three AC ammeters with 3 digits LED display, one for each phase.
Measurement range 0,1...16A
Measurement accurate ±2,5%.
Built-in web server monitoring function of the current load of individual circuit blocks.
Environmental conditions monitoring, e.g. temperature, humidity, flooding, etc. (option)
Web interface: Ethernet RJ45 (Ethernet 10/100BaseT)
Protocols: TCP/IP, HTTP, HTTPS, SSL, SNMP v1/v2c, SMTP, Syslog, DHCP.
Protection level IP20.
Declaration of Conformity CE.
6 x IEC320C19 sockets outlet max. 16A/230VAC
Sockets are located in 3 blocks. Each block is supplied from other phase. Sockets are colour-coded by phase (black, red and grey).
Plastic elements colour: light-grey similar to RAL7035
Natural anodized aluminium body.
Dimensions without mounting brackets (WxHxD): 44x1635x46mm
Vertical mounting in 19" rack - 0U
Mounting brackets for installation in 4 orientations
3-meter supply cable H05VV-F.5G2,5mm² in white colour.
Supply cable terminated IEC60309 plug red 3-phase (3x16A/400V).
Maximum current 48A (11 040 W).
Three AC ammeters with 3 digits LED display, one for each phase.
Measurement range 0,1...16A
Measurement accurate ±2,5%.
Built-in web server monitoring function of the current load of individual circuit blocks.
Environmental conditions monitoring, e.g. temperature, humidity, flooding, etc. (option)
Web interface: Ethernet RJ45 (Ethernet 10/100BaseT)
Protocols: TCP/IP, HTTP, HTTPS, SSL, SNMP v1/v2c, SMTP, Syslog, DHCP.
Protection level IP20.
Declaration of Conformity CE.
