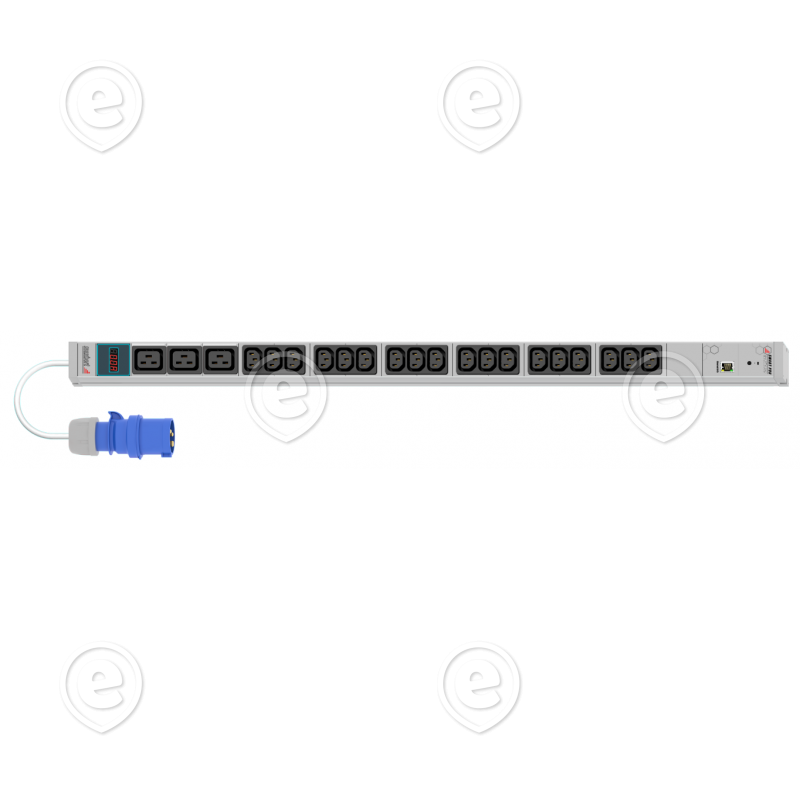

Toitesiin 18xC13 + 3xC19 ampermeetriga, IP fukts, 3m -IEC60309 pistik, pikkus 861mm, RAL7035
Tootekood:
MXLR0VFH33
Ühik:
tk
Laoseis:
Tarneaeg 5-30 päeva.
447,67 €
18 x IEC320C13 sockets outlet max. 10A/230VAC
3 x IEC320C19 sockets outlet max. 16A/230VAC
Plastic elements colour: light-grey similar to RAL7035
Natural anodized aluminium body.
Dimensions without mounting brackets (WxHxD): 44x861x46mm
Vertical mounting in 19" rack - 0U
Mounting brackets for installation in 4 orientations
3-meter supply cable H05VV-F.3G1,5mm² in white colour.
Supply cable terminated IEC60309 plug blue 1-phase (16A/230V).
Maximum current 16A (3680 W).
AC ammeter with 3 digits LED display.
Measurement range 0,1...16A
Measurement accurate ±2,5%.
Built-in web server monitoring function of the current load of individual circuit blocks.
Environmental conditions monitoring, e.g. temperature, humidity, flooding, etc. (option)
Web interface: Ethernet RJ45 (Ethernet 10/100BaseT)
Protocols: TCP/IP, HTTP, HTTPS, SSL, SNMP v1/v2c/v3, SMTP, Syslog, DHCP.
Protection level IP20.
Declaration of Conformity CE.
3 x IEC320C19 sockets outlet max. 16A/230VAC
Plastic elements colour: light-grey similar to RAL7035
Natural anodized aluminium body.
Dimensions without mounting brackets (WxHxD): 44x861x46mm
Vertical mounting in 19" rack - 0U
Mounting brackets for installation in 4 orientations
3-meter supply cable H05VV-F.3G1,5mm² in white colour.
Supply cable terminated IEC60309 plug blue 1-phase (16A/230V).
Maximum current 16A (3680 W).
AC ammeter with 3 digits LED display.
Measurement range 0,1...16A
Measurement accurate ±2,5%.
Built-in web server monitoring function of the current load of individual circuit blocks.
Environmental conditions monitoring, e.g. temperature, humidity, flooding, etc. (option)
Web interface: Ethernet RJ45 (Ethernet 10/100BaseT)
Protocols: TCP/IP, HTTP, HTTPS, SSL, SNMP v1/v2c/v3, SMTP, Syslog, DHCP.
Protection level IP20.
Declaration of Conformity CE.
