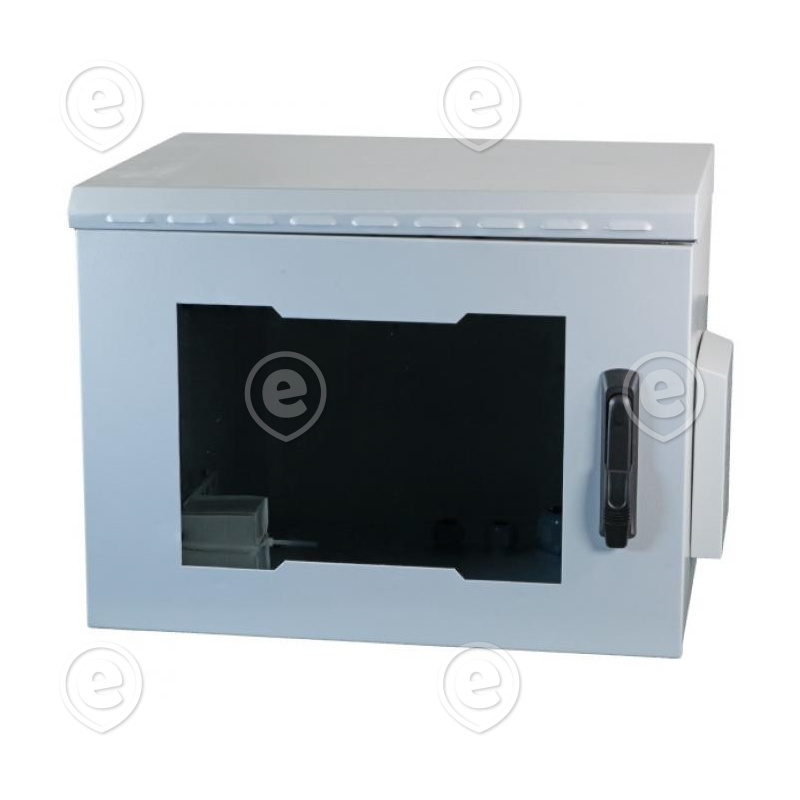

Seinakapp 7U (klaasuks) välitingimustesse IP55, sügavus 600mm, RAL7035

Seinakapp 7U (klaasuks) välitingimustesse IP55, sügavus 600mm, RAL7035

Tootekood: EFB691707IP55.2G
EAN: 4049759222000
Kaubamärk:
Ühik: tk
Laoseis: Laos
Hind: 538,22 €
tk
 Lisa korvi

ARTICLE INFORMATION

Steel sheet housing with welded corpus, completely pre-assembled
Right- and left-sided metal covered air inlets for passive ventilation
Side walls not detachable
Roof hinged, inner roof prepared for mounting of Plug&Play fan unit Art.-No. 691656GR (cable not included, please order separately, e.g. Art.-No. EK504.x)
Bottom with PG glands 1 x PG48, 2 x PG21 and 3 x Ø 20 mm PVC blind grommets
For depth 450 mm inside 2 x 19" profile rails front-sided, galvanised, with numberung of rack units (U)
For depth 600 mm inside 4 x 19" profile rails (2 front, 2 rear), galvanised, with numberung of rack units (U)

Front door with window of certified safety glass and 3-point bar locking, lockable, with profile half-cylinder acc. to DIN 18252 / EN1303
Profile half-cylinder exchangeable by customer
Cabinet parts inside completely earthed
Max. load 100 kg
Paint finish RAL7035, light grey
Protection degree IP55
Plinth for use as standing cabinet available as option
Included accessories: 4 x Wall mount angle, 2 x key

PRODUCT FEATURES

  • Mounting level
  • Front and rear
  • Type of profile rail
  • L-shaped
  • Type of ventilation
  • Passive
  • Modular spacing
  • 482.6 mm (19 inch)
  • With roof plate
  • True
  • With earthing
  • True
  • With front door
  • True
  • With sidewall
  • True
  • Demountable
  • True
  • Model
  • With permanent frame
  • Material
  • steel
  • Surface finishing
  • powder coating
  • Degree of protection (IP)
  • IP55
  • Number of doors
  • 1
  • Number of cartons
  • 1

  •
  •
Sügavus 600mm
Kandevõime 100kg
Värv Hall
Standard IP55
Kõrgus U-des 7U
