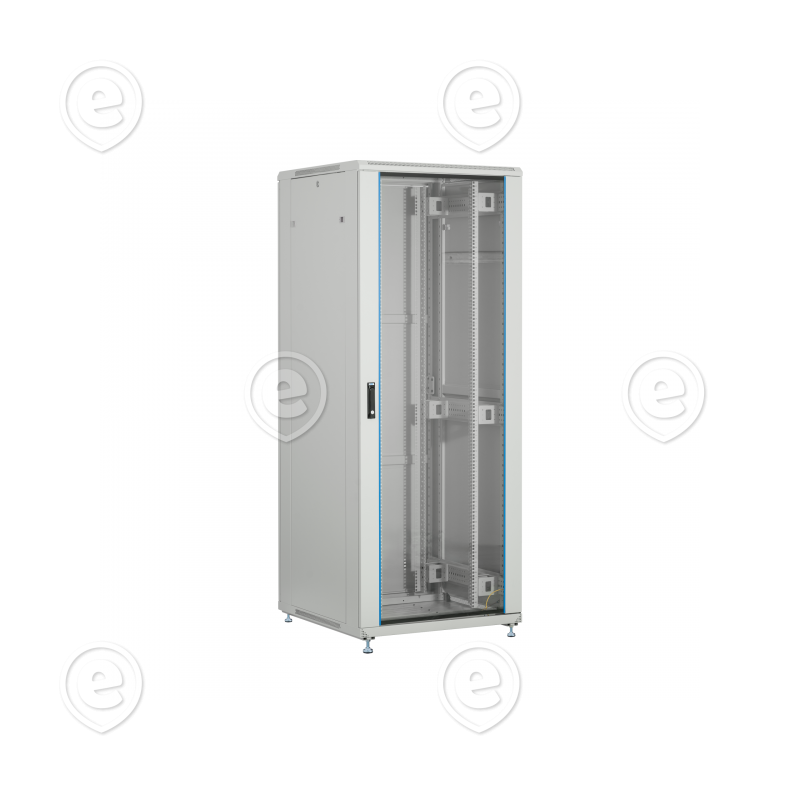

19“ Network cabinet according to DIN41494
Steel sheet housing with screwed frame, completely pre-assembled, self-ventilated, dismountable
Inside front and rear 4 x 19“ profiles (2 front, 2 rear-sided), galvanised, depth-adjustable in steps of 20 mm
Uprising numbering of rack units at the 19“ profiles
Front door 1-part, with window of certified safety glass (thickness 5 mm)
Front door with 1-point turning handle, lockable
Rear door 1-part, steel sheet, with 1 x latch locking (lock equal to front door)
Door stop for font and rear door possible left- or right-sided, door opening angle > 180°
Detachable side walls with 2 x quick release and 1 x latch locking (lock equal to door lock)
Cabinets stackable side-by-side with and without removal of side walls, baying set Art.-No. PEL-ANR01
Roof and bottom with 2 pre-punched openings for cable entry (386 x 69 mm)
Roof and bottom prepared for accommodation of 4-fan unit Art.-No. PEL-LFD04ET.GR
Cable entries and fan openings covered with screwed covers
Internal earthing of all cabinet sections
Max. load 800 kg for static equally distributed load
Protection degree IP20
Paint finish RAL7035, light grey
Included accessories: 4 x leveling feet, set of captive nuts (PU 40 pcs. for 42U, 20 pcs. for 24U), keys
