home » Modularpaneelid CAT5,6,7,8 » Modularpaneel STP 24xRJ45 Cat.6A, 19“ 1U, RAL9005

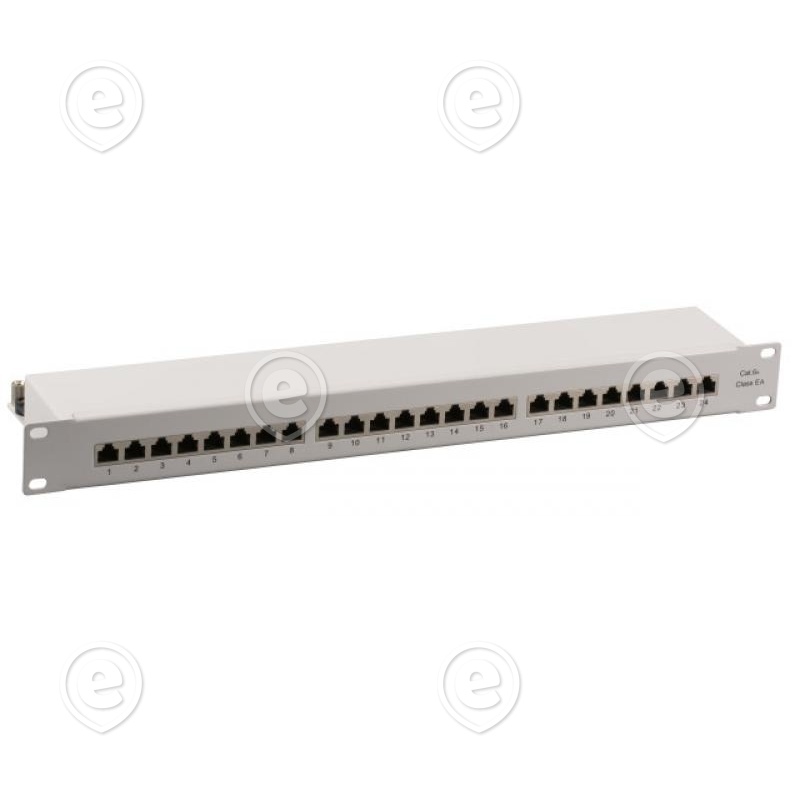

Modularpaneel STP 24xRJ45 Cat.6A, 19“ 1U, RAL9005

Modularpaneel STP 24xRJ45 Cat.6A, 19“ 1U, RAL9005

Tootekood: EFB37666SW.1M
EAN: 4049759180096
Kaubamärk:
Ühik: tk
Laoseis: Tellimisel
Hind: 90,56 €
tk
 Lisa korvi

ARTICLE INFORMATION

The high quality of the shielded Cat.6A RJ45 patch panel ensures excellent performance for 10 Gigabit Ethernet applications.

19" mounting, 1U
24 Ports
LSA connection strip for installation cable AWG24..AWG22
Color code according to TIA / EIA 568 A / B
Lid with quick release
With earthing terminal

Scope of delivery:
24 cable ties, Instruction manual, 4 screw M6x18mm with nuts

PRODUCT FEATURES

  • Mounting method
  • 482.6 mm (19 inch)-installation
  • Category
  • 6A (TIA)
  • Transmission
  • 10 Gbit
  • Bandwidth
  • 500 MHz
  • Number of height units
  • 1
  • Connection type
  • LSA
  • Type of connector
  • RJ45 8(8)
  • Screened
  • True
  • Cross section
  • AWG 24 - AWG 22
  • Colour code
  • acc. TIA/EIA 568A/B
  • Complaint to UL94
  • V-0
  • Housing material Panel
  • Steel, 1.5 mm
  • Housing material of RJ45 jacks
  • PBT
  • Housing material LSA-terminal
  • PC
  • Material LSA contacts
  • Phosphor bronze, tinned
  • Contact coating
  • 3 µ" gold plated
  • Durability LSA contacts
  • 200
  • Mating cycles RJ45 jack
  • 750
  • Height
  • 44.5 mm
  • Width
  • 482.6 mm
  • Depth
  • 108.2 mm
  • Temperature range (Storage)
  • -40 – 85 °C
  • Temperature range (Operation)
  • 0 – 70 °C
  • Electrical strength
  • 125 V AC RMS
  • Dielectric Withstanding Voltage
  • 750 V AC 60Hz
  • Current Rating
  • 1.5 A
  • Insulation Resistance
  • 1000 MΩ
  • Contact Resistance
  • 100 mΩ
  • POE Standard
  • POE;POE+
