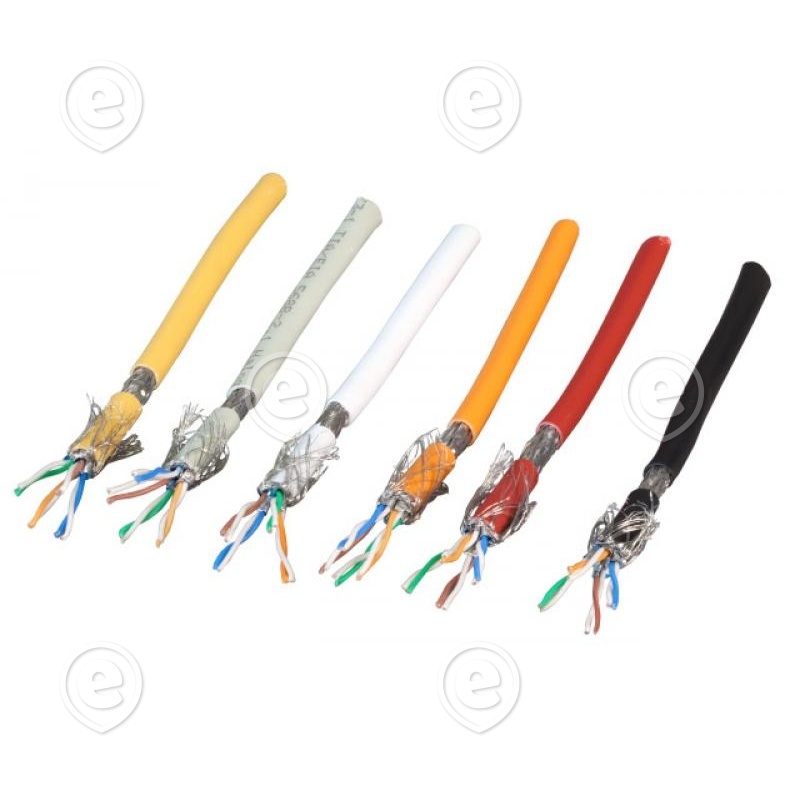

Kiuline kaabel CAT7 S/FTP, värvus must, 100m/rull

Tootekood: EFBMK7104.100B
EAN: 4049759151614
Kaubamärk:
Ühik: rull
Laoseis: Tellimisel
Hind: 109,73 €
rull
 Lisa korvi

ARTICLE INFORMATION

The patch cable MK7104 is constructed for transmissions up to 600 MHz and exceeds with the electrical transmission properties and requirements of the category 7. With this cable transmission rates up to 10 GBit according to IEEE 802.3 are possible.

PRODUCT FEATURES

  • Cable type
  • EFB MK7104
  • Bending radius (dynamic)
  • 5 x OD
  • Bending radius (static)
  • 5 x OD
  • Cable structure
  • S/FTP
  • Category
  • 7
  • Conductor category
  • Kl.2 = single wire
  • Conductor material
  • CU, tinned
  • AWG-size/quantity of cores
  • 26/7
  • Screen over stranding
  • braiding
  • Stranding element
  • pairs
  • Screen over stranding element
  • foil + braid
  • Core insulation
  • foam-skin PE
  • Core identification
  • colour
  • Material outer sheath
  • FRNC-B
  • Flame retardant
  • acc. EN 60332-1
  • Halogen free
  • acc. EN 60754-1/2;acc. EN 60754
  • Low smoke
  • acc. EN 61034
  • Operating temperature, flexible
  • 0 – 60 °C
  • Operating temperature, fix
  • -20 – 60 °C
  • Operating temperature, storage
  • 0 – 60 °C
  • Loop resistance
  • ≤ 142 Ohm/km
  • Resistance unbalance
  • ≤ 2 %
  • Insulation resistance (500V)
  • ≥ 100 MOhm/km
  • Impedance
  • 100 ± 15 Ohm
  • Max. Freuqency
  • 600 MHz
  • Cabling standards
  • EN 50173-1;ISO/IEC 11801;ANSI/TIA 568-C.2;IEC 61156-5:2009;EN 50288-4-1
  • Installation standard
  • EN 50174
  • Directive/Regulation
  • RoHS 2011/65/UE
  • Transmission standards
  • IEEE 802.3 10Mbit to 10Gbit
  • Cable
  • IEC 61156-5;EN 50288-4-1
