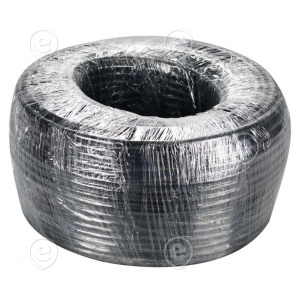

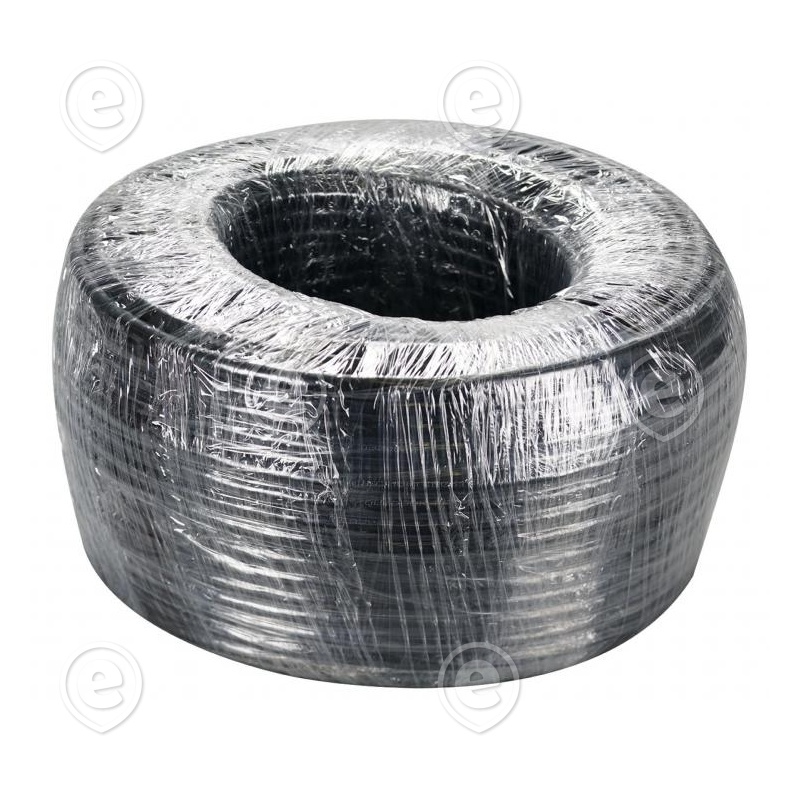

Keerdpaarkaabel SISE/VÄLI S/FTP CAT7, klass Dca ( 100m rull)
Hind:
142,63 €
ARTICLE INFORMATION

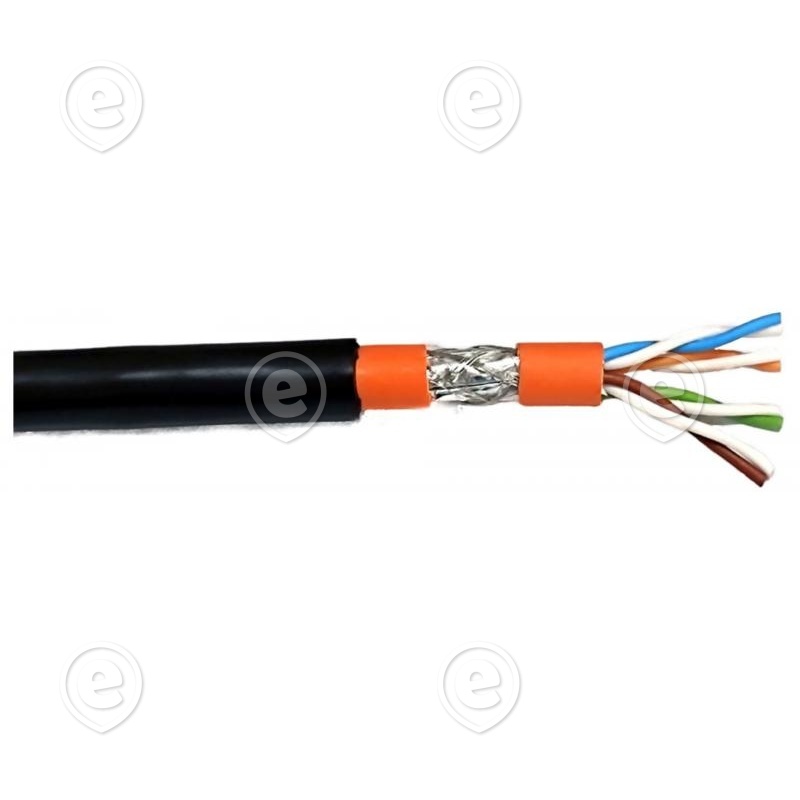

The Cat.7 S/FTP indoor/outdoor cable is characterised by the cable construction 4x2xAWG23/1 and achieves a transmission frequency of up to 1200 MHz. The cable has a PE outer sheath and a halogen-free inner sheath and conforms to the IEC 60332-1 standard and Construction Products Regulation (BauPVO) Euroclass Dca. The cable is suitable for installations in dry or damp rooms, outdoors or underground. Conforms to the standards ISO/IEC 11801, DIN EN 50173, DIN EN 50288-4-1.Technical properties
AWG-size: | 23/1 |
---|---|
Bending radius (dynamic): | 8 x OD |
Bending radius (static): | 7 x OD |
Cable: | EN 50288-4-1 IEC 61156-5 |
Cable Construction: | S/FTP |
Cabling standards: | EN 50173-1 ISO/IEC 11801 |
Category: | 7 |
Characteristic impedance: | 100 ± 15 Ohm |
Conductor category: | Class 1 = solid |
Conductor material: | Cu, tinned |
Core identification: | Colour |
Core insulation: | foam-skin PE |
Coupling attenuation: | 80 dB |
Coupling attenuation Type: | Type 1 |
Diameter conductor: | 0.56 mm |
Directive/Regulation: | REACH 1907/2006/EC RoHS 2011/65/UE |
Flame retardant: | acc. EN 60332-1 acc. IEC 60754-2 acc. IEC 61034 |
Halogen free: | acc. EN 60754 acc. EN 60754-1/2 |
Halogen free (according to EN 60754-1/2): | True |
Installation standard: | EN 50174 |
Loop resistance: | 171.2 Ohm/km |
Low smoke: | acc. EN 61034 |
Material outer sheath: | PE + LSZH |
Max. Freuqency: | 1200 MHz |
NVP value: | 76 % |
Operating temperature, storage: | -30 – 70 °C |
Permitted cable outer temperature after assembling without vibration: | -30 – 70 °C |
Permitted cable outer temperature during assembling/handling: | 0 – 50 °C |
PoE: | acc. to IEEE802.3af PoE acc. to IEEE802.3at PoE+ acc. to IEEE802.3bt 4PPoE yes |
Resistance unbalance: | 3 % |
Screen over stranding: | foil + braid |
Screen over stranding element: | Foil |
Separation class acc. EN50174-2: | D |
Stranding element: | Pairs |
Test voltage DC, 1 min: | 1000 V |
Transmission standards: | IEEE 802.3 10Mbit to 10Gbit |
UV resistance: | yes |
