home » Võrgu- ja serverikapid » Karkassid 19" » Karkass 42U 1963x600x1000 mm, 19" rööpad ees ja taga, katus läbiviikudega RAL7035

Karkass 42U 1963x600x1000 mm, 19" rööpad ees ja taga, katus läbiviikudega RAL7035
picture picture

Karkass 42U 1963x600x1000 mm, 19" rööpad ees ja taga, katus läbiviikudega RAL7035

Tootekood: PRO-4260GR.0D
EAN: 4049759218188
Kaubamärk:
Ühik: tk
Laoseis: Tellimisel
Hind: 1057,74 €
tk
 Lisa korvi

ARTICLE INFORMATION

19" rack frame according to DIN41494
Screwed steel sheet frame, completely pre-assembled, self-ventilated, dismountable
Inside front and rear 4 x 19"profiles (2 front, 2 rear-sided), galvanised, step-less depth-adjustable
Contrariwise numbering of rack units at the 19" profiles
Delivery without front/rear door and side walls for modular, individual configuration
For installed front and rear door, door stop left or right-sided possible
Cabinets stackable side-by-side with and without removal of the side walls, baying set (Art.-No. PRO-ANR0X), otherwise screwable via screw set M6

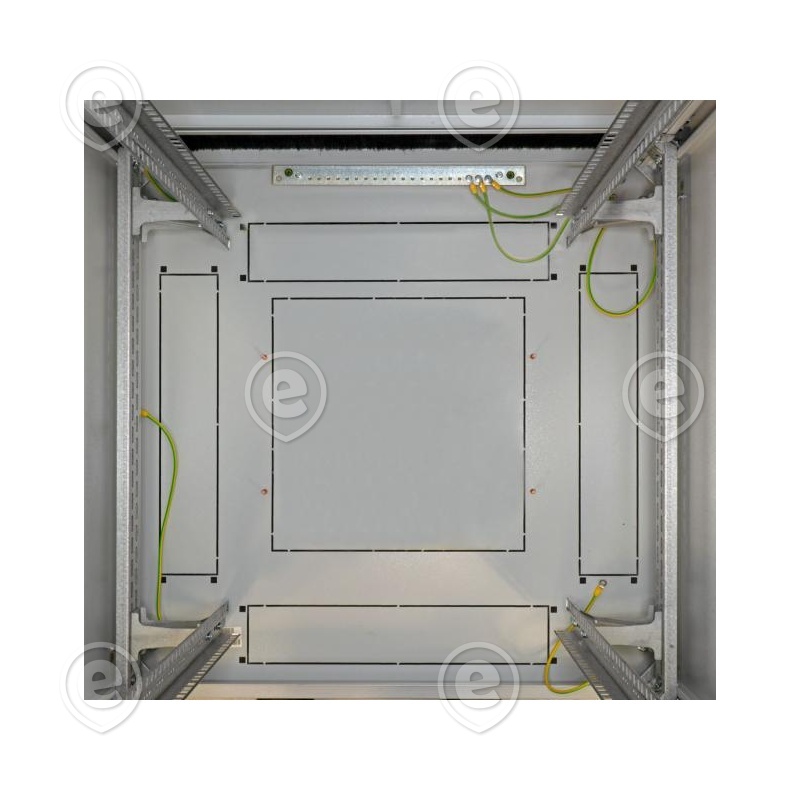

Roof and bottom with 4/6 pre-punched openings for cable entry (450 x 90 mm), for 600 mm cabinet width cable entry only rear

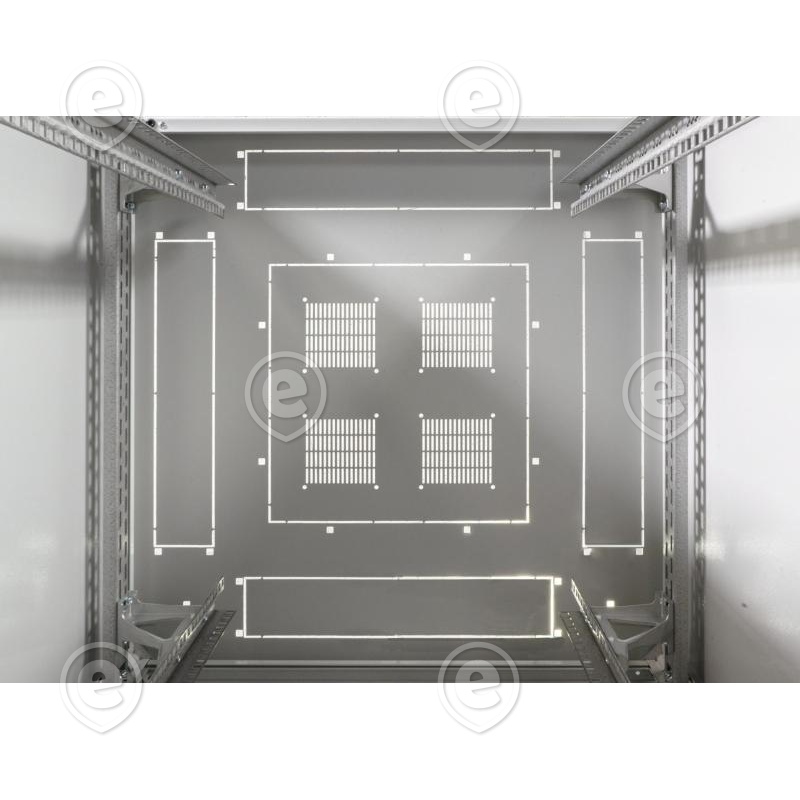

Roof prepared for accommodation of 2-fan or 4-fan units, bottom with pre-punched opening for filter or cable entry modules
Internal earthing of all cabinet sections
Pre-assembled earthing bar rear-sided in the middle of the cabinet (ports: 2 x M5 + 2 x 8 mm)
Max. load 1000 kg (depths 600 / 800 mm) resp. 1360 kg (depths 1000 / 1200 mm for >24U)
Paint finish RAL7035, light grey / RAL9005, jet black
Protection degree IP20
Included accessories: 1 x brush, earthing bar pre-installed, 4 x levelling feet M12, 2 x key
Delivery in transport packaging on disposable pallet

PRODUCT FEATURES

  • Type of front door
  • Without
  • Type of back door
  • Without
  • Mounting level
  • Front and rear
  • Model
  • With permanent frame
  • Modular spacing
  • 482,6 mm (19 inch)
  • Type of profile rail
  • Crank
  • Type of ventilation
  • Passive
  • With roof plate
  • True
  • With earthing
  • True
  • With front door
  • False
  • With backside door
  • False
  • With sidewall
  • False
  • With socket
  • False
  • Material
  • Steel
  • Surface finishing
  • With powder coating
  • Degree of protection (IP)
  • IP20
  • Demountable
  • True
Kandevõime 1000kg
Kõrgus U-des 42U
Sügavus 1000mm
Värv Hall
