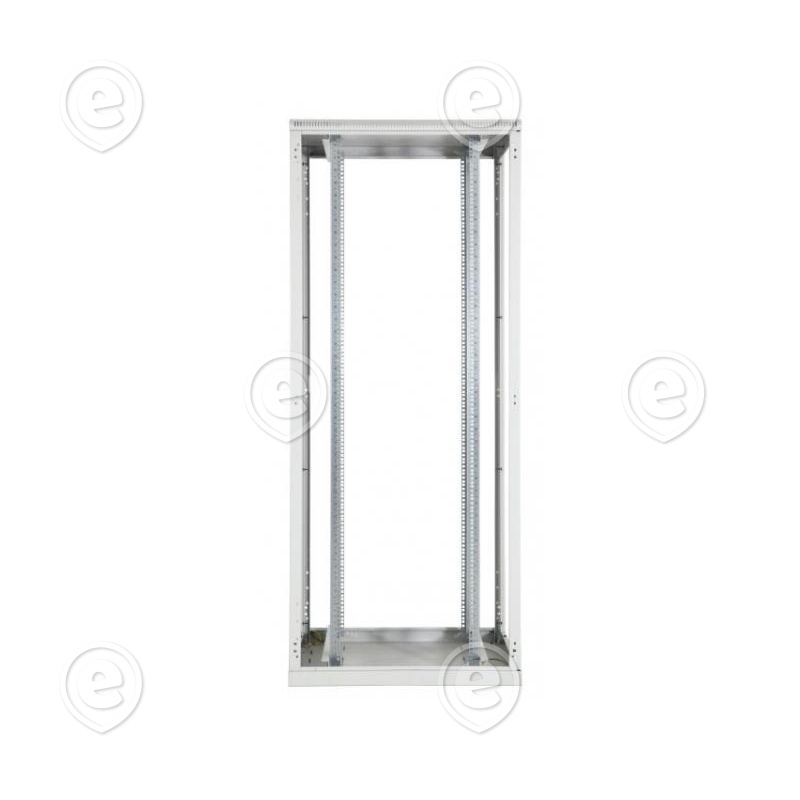

Karkass 1980x800x800mm, RAL7035, 19" rööpad ees ja taga
Tootekood:
EFB691742U
EAN:
4049759138486
Kaubamärk:
Ühik:
tk
Laoseis:
Tarneaeg 5-30 päeva.
522,39 €
19" rack frame according to DIN 41494
Steel sheet frame, welded, self-ventilated
Inside 4 x 19" profiles (2 front, 2 rear), galvanised, depth-adjustable in 25 mm raster
Numbering of rack units at the profiles
Delivery without front/rear door and side walls for modular, individual configuration
For installed front and rear door, door stop left or right-sided possible
For installed front and rear door, door opening angle 180° due to exterior hinges
For installed side walls, these are detachable via 2 x latch locking (lock equal to the door lock)
Cabinets stackable side-by-side and rear-by-rear with and without side walls, line-up bolt set (Art.-No. 691644) suitable for detached walls, else screwable with screws and nuts M6
Roof and bottom with 4 pre-punched openings for cable entry (front/rear/left/right) and for accommodation of fans and filter units (for 600 mm cabinet width cable entry front/rear)
Internal earthing of all cabinet parts
Central earthing bolt M8 rear-left in the cabinet
Max. load 600 kg, increase to 1000 kg possible via traverse set Art.-No. 691679N.x
Paint finish RAL9005, jet black
Protection degree IP20 reachable with mounting of front door, rear door and side walls
Included accessories: 1 x brush terminal, 1 x set of captive nuts (PU 20 pcs.), 4 x levelling feet M10
