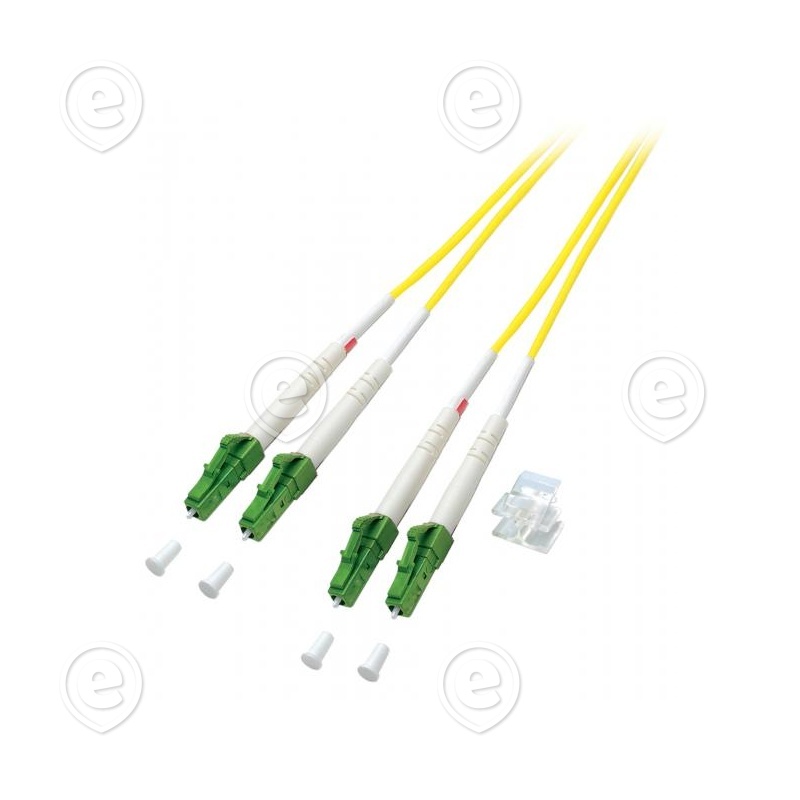

Jätkukaabel SM LC/APC8° - LC/APC8° 9/125 5m
Tootekood: EFBO0381.7,5
EAN: 4049759056315
Kaubamärk:
Ühik: tk
Laoseis: Tellimisel
EAN: 4049759056315
Kaubamärk:
Ühik: tk
Laoseis: Tellimisel
Hind:
15,25 €
| PC-version: | True |
|---|---|
| APC version Connector 1: | 8° |
| APC version Connector 2: | 8° |
| Anti-kink sleeve: | put-on |
| Bend optimized fiber: | no |
| Cable Conform to Standard: | IEC 60793-2 |
| Cable Construction: | Duplex |
| Cable type: | I-V(ZN) H |
| Cable Ø: | 2.0 mm |
| Category: | OS2 acc. to ITU-T G.652.D |
| Colour outer sheath: | yellow |
| Connector Conform to Standard: | IEC 61754-20 |
| Connector colour 1: | green |
| Connector colour 2: | green |
| Fibre type: | Single mode 9/125 |
| Flame retardant: | According to EN 50265-2-1 |
| Halogen free: | acc. IEC60754-1 |
| Halogen free (according to EN 50267-2-3): | True |
| Insertion loss 1310nm: | < 0.3 dB |
| Low smoke: | acc. IEC61034-1 |
| Material outer sheath: | LSZH |
| Max. Tension: | 160 N |
| Min. Bending radius (Dynamic): | 20xOD |
| Min. Bending radius (Static): | 10xOD |
| Number of fibres: | 2 |
| Operating Temperature: | -20 – 75 °C |
| Quality class singlemode: | B/2 acc. IEC 61753-1 |
| Storage Temperature: | -20 – 85 °C |
| Type of connector connection 1: | LC-Duplex |
| Type of connector connection 2: | LC-Duplex |
| Kiudude arv | 2 |
| Pistikute valik | LC (APC) - LC (APC) |
| Pikkus | 7,5m |
| Standard | OS2 |
| Tüüp | APC |
| Värv | Kollane |
