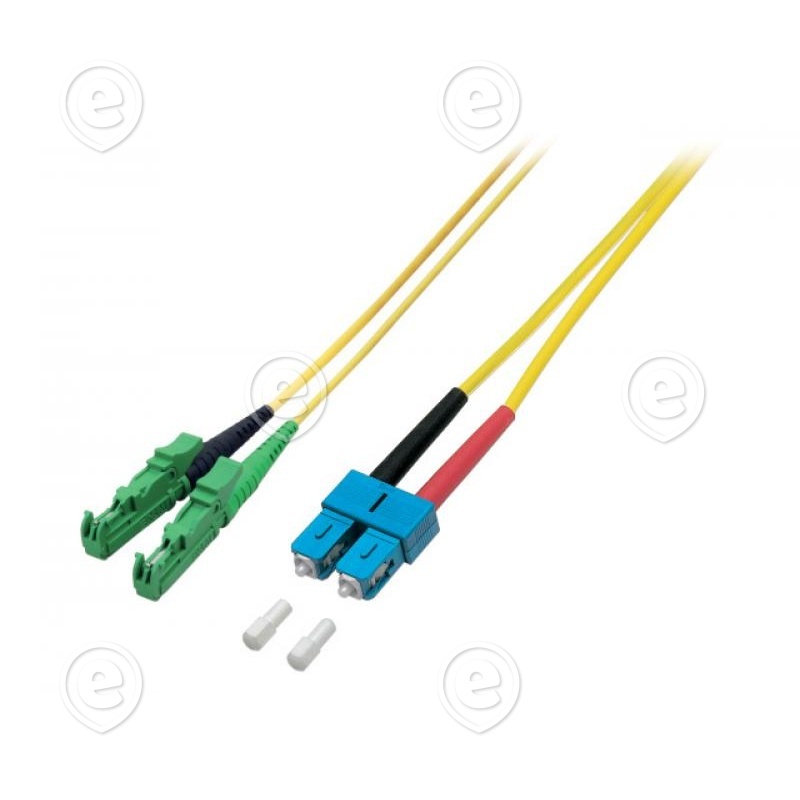

Jätkukaabel SC-E2000®/APC, 9/125µ, OS2, 3,0m
Tootekood:
O0939.3
EAN:
4049759026011
Kaubamärk:
Kiudude arv:
2
Pistikute valik:
SC (UPC)-E2000 (APC)
Pikkus:
3,0m
Standard:
OS2
Tüüp:
APC
Värv:
Kollane
Ühik:
tk
Laoseis:
Tarneaeg 5-30 päeva.
37,48 €
ARTICLE INFORMATION
Fiber jumper are well defined components in international standard of structured cabling ISO/IEC11801.Due to many different network protocols created in the last 25 years , also a wide range of connectors had been developed. Some of them are still important today: LC, SC, E2000®, MPO/MTP.
Fiber jumper (patchcord) are defined as shortest connection between passive interface and active deviceport, regarding structured cabling standard. Rating of performance, known as category, as well as performance of total transmission channel, known as link class,Similar descriptions for patchcords: Connection cable, drop cable, adapter cable, interconnecting cord, Jumper
Features of EFB fiber optic patch cables
Tension relief reinforced with aramid yarn
Halogen-free and flame-retardant sheath according to IEC-60754-2, IEC-60332-1 and IEC-61034
PRODUCT FEATURES
- Fibre type
- Singlemode
- Category
- G657A1 acc. to ITU-T G.657
- Number of fibres
- 2
- Anti-kink sleeve
- put-on
- Type of connector connection 1
- E2000®
- APC version Connector 1
- 8°
- Connector colour 1
- green
- Type of connector connection 2
- SC-Duplex
- Connector colour 2
- blue
- Max. Tension
- 160 N
- Min. Bending radius (Static)
- 10xOD
- Min. Bending radius (Dynamic)
- 20xOD
- Cable type
- Simplex
- Cable Construction
- Duplex
- Cable Ø
- 3.0 mm
- Colour outer sheath
- yellow
- Jacket Material
- LSZH
- Flame retardant
- According to EN 50265-2-1
- Halogen free
- acc. IEC60754-1
- Low smoke
- acc. IEC61034-1
- Operating Temperature
- -20 – 75 °C
- Storage Temperature
- -20 – 85 °C
- Quality class singlemode
- B/2 acc. IEC 61753-1
- Cabling standard
- ISO/IEC 11801;EN-50173-1
- Cable Conform to Standard
- IEC 60793-2
