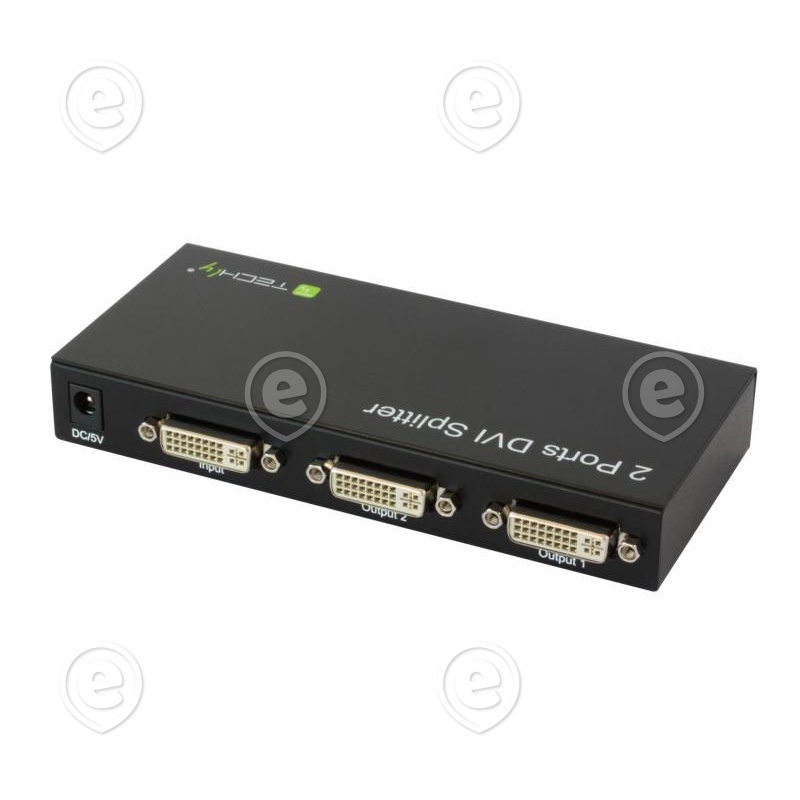

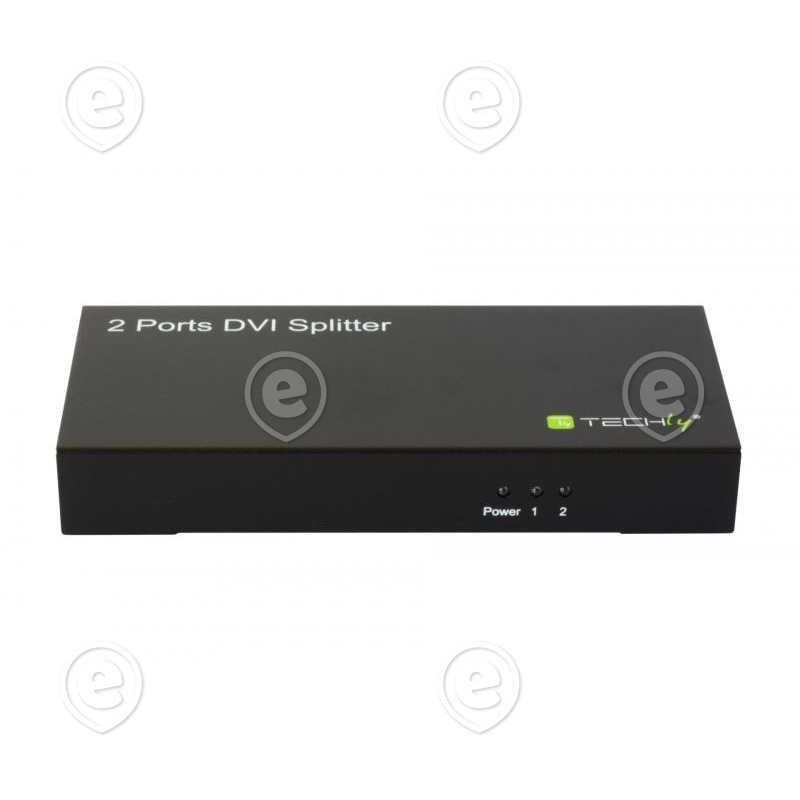

DVI-I 24+5 2-pordine videosplitter

DVI-I 24+5 2-pordine videosplitter

Tootekood: EFBICKV102DTY
EAN: 8051128102109
Kaubamärk:
Ühik: tk
Laoseis: Tellimisel
Hind: 54,29 €
tk
 Lisa korvi

Product information for DVI-I 24+5 Extender / Video Splitter, 2 Ports

ICKV102DTY is a DVI splitter with two outputs. It distributes the input DVI signal to the two DVI outputs simultaneously. This product has the ability of buffering and amplifying. Each amplifier splitter’s output can achieve long distance transmission of DVI signal of 10 meters. When two or more products are cascaded, a larger distribution is reached.
This DVI splitter offers solutions for HDTV, STB, DVD and projectors for retail and show site, data center control as well as presentations in conference rooms, school and corporate training environments.

Features
  • Easy to Use: Install in seconds; no need of setting
  • Cascading: Larger distribution of signal
  • Supports the highest video resolution of 1080p
  • Supports a bandwidth of 225MHz / 2.25Gbps per channel (6.75Gbps all channels)
  • Supports deep color 12bit per channel (36bit all channels)
  • Supports HDCP

  • Technical specifications
  • Input DDC Signal: 5 Volt p-p (TTL)
  • Max. Single Link Range: 1920x1080 pixel
  • Video Output: DVI
  • Vertical Frequency Range: 50/60Hz
  • Bandwidth of Video Amplifier: 225MHz / 2.25Gbps
  • Resolutions (HDTV) interlaced (50&60Hz): 480i, 576i, 1080i
  • Resolutions (HDTV) progressive (50&60Hz): 480p, 576p, 720p, 1080p

  • Power requirement
  • External power supply: 5V DC @ 2A
  • Max. power consumption: 8W

  • Environmental Characteristics
  • Operating temperature: 0 to +70°C
  • Operating humidity: 10 to 85 % RH (no condensation)
  • Storage temperature: -10 to +80°C
  • Storage humidity: 5 to 90 % RH (no condensation)

  • Size
  • Width: 155 mm
  • Depth: 70 mm
  • Height: 23 mm

  • Certifications
  • CE, RoHS, WEEE

  • Package Contents
  • 1x DVI splitter
  • 1x 5V DC Power Supply
  • 1x User’s Manual
