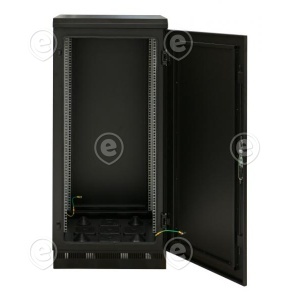

19" Network Cabinet 42U 800x800, IP55, with Pre-Assembled Plinth, RAL9005

SKU: EFB691742IP55.TS
EAN: 4049759185893
Brand:
Unit: kompl.
Qty: Out of Stock
Price: 1938,25 €
kompl.
 Add to cart

ARTICLE INFORMATION

19" Network cabinet according to DIN 41494
Steel sheet housing with welded frame, completely pre-assembled
Pre-assembled plinth 100 mm
Inside front and rear 4 x 19" profiles (2 front, 2 rear-sided), galvanised, depth-adjustable in 25 mm raster
Numbering of rack units at the 19" profiles
Front an rear door steel, 1-part
Front and rear door with 3-point locking with turning handle, lockable

Door opening angle front and rear > 120°
Side walls not detachable
Inner roof pre-punched openings for fan units

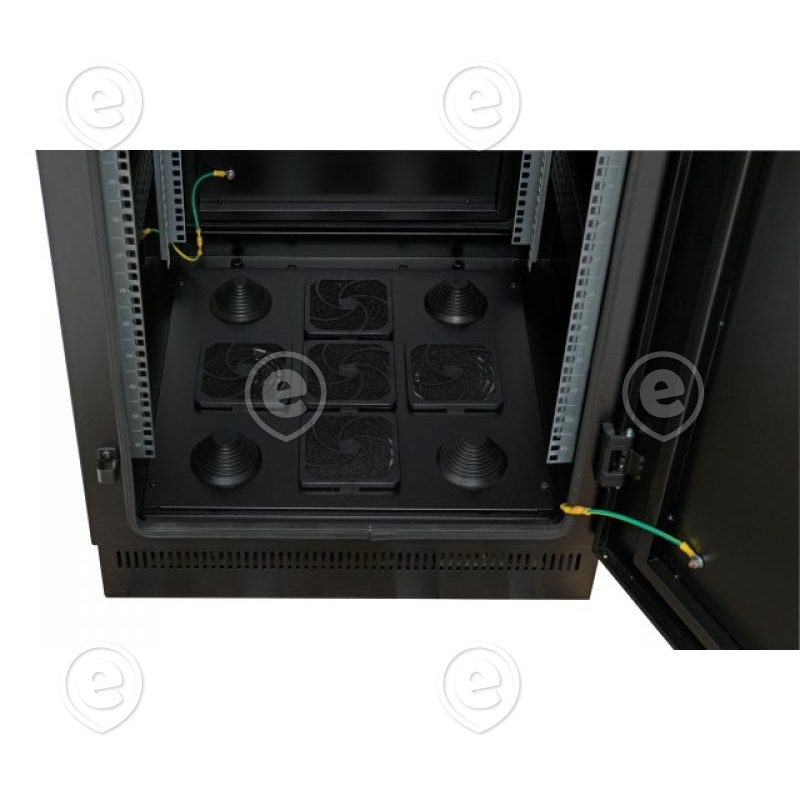

Bottom prepared with air inlet filters and rubber grommets Ø 80 mm for cable entry
Internal earthing of all cabinet sections
Max. load 1000 kg
Paint finish RAL9005, jet black
Protection degree IP55
Included accessories: 1 x set of captive nuts (PU 20 pcs.), pre-installed plinth, 2 x key
Delivery in transport packaging on disposable pallet

PRODUCT FEATURES

  • Type of front door
  • Steel door 1-part
  • Type of back door
  • Steel door 1-part
  • Mounting level
  • Front and rear
  • Model
  • With permanent frame
  • Modular spacing
  • 482,6 mm (19 inch)
  • Type of ventilation
  • Passive
  • With roof plate
  • True
  • With earthing
  • True
  • With front door
  • True
  • With backside door
  • True
  • With sidewall
  • True
  • With socket
  • True
  • Material
  • Steel
  • Surface finishing
  • With powder coating
  • Degree of protection (IP)
  • IP55
  • Demountable
  • False
  •
  •
