Home » Special Sales » RJ45 Patchcable SF/UTP Cat5E 5,0m green

Special price
Kaup laos

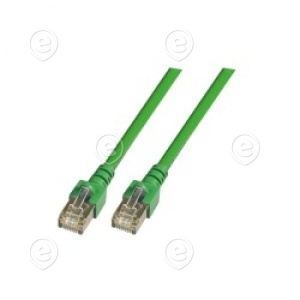

RJ45 Patchcable SF/UTP Cat5E 5,0m green

RJ45 Patchcable SF/UTP Cat5E 5,0m green

SKU: EFBK5460.5
Brand:
Unit: tk
Qty: In Stock
Price: 0,71 € 1,02 €
tk
 Add to cart

ARTICLE INFORMATION

The Cat.5e RJ45 patch cable ensures good characteristics for 2.5 Gigabit Ethernet applications. Due to the double shielding, the patch cable is even better protected against EMC radiation.

Cross section 4 x 2 x AWG26/7
Cast anti-kink grommet (patented)
Cable structure SF/UTP
Length imprint on the grommet
Conductor material CCA

PRODUCT FEATURES

  • Colour outer sheath
  • green
  • Area of Application
  • Structured cabling;Industrial Ethernet;Data center
  • Category
  • 5e
  • Type of connector connection 1
  • RJ45 8(8)
  • Type of connector connection 2
  • RJ45 8(8)
  • Connector type
  • RJ45 Standard
  • Contacts
  • Gold plated
  • Pin assignment
  • 1:1
  • Allocation
  • acc. TIA/EIA 568B
  • Type
  • Shielded
  • Length imprint
  • yes
  • Anti-kink sleeve
  • plugged in
  • Colour anti-kink sleeve
  • green
  • Locking lever
  • yes
  • Mating cycles
  • 2000
  • Bending radius
  • >25 mm
  • Conductive shield
  • Selected shield contact
  • Suitable for degree of protection (IP)
  • IP20
  • Cable type
  • SF/UTP
  • Total screening
  • 65 %
  • Cable construction
  • 4x2
  • AWG-size
  • 26/7
  • Conductor Material
  • CCA
  • Silicone-free
  • yes
  • Jacket material
  • PVC
  • Printing
  • SFTP 300 CAT.5E 26AWGX4P PATCH ISO/IEC 11801 & EN 50173 VERIFIED
  • Outer diameter of the cable
  • 5.7 mm
  • Temperature range
  • -5 – 70 °C
  • Conductor resistance DC
  • 146 Ω/km
  • Loop resistance
  • 292 Ω/km
  • Resistance unbalance
  • 5 %
  • Insulation resistance
  • 10 MΩ
  • Contact resistance
  • 30 mΩ
  • Test voltage
  • 1000 V DC, 1min
  • POE class
  • PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt
  • Current capacity
  • max. 1 A
  • Operating-/ tempering voltage
  • max. 50 V DC
  • Bandwidth
  • 100MHz
  • Transmission
  • 2.5Gbit
  • Connector
  • IEC 60603-7-3
