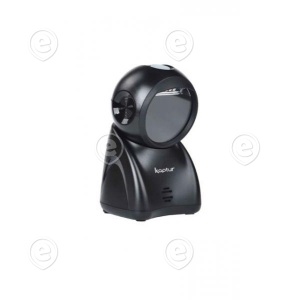

KP1401 1D and 2D Desk Reader

KP1401 desktop scanner
The KP1401 desktop reader reads 1D and 2D barcodes, including Aztek barcodes, quickly and easily, whether they are printed or viewed on paper or from the screen of a mobile phone. The desktop reader KP1401 has soft lighting for better comfort and can be tilted by 10 °. Thanks to its performance and convenience, the KP1401 desktop reader is the ideal accessory for every POS system.

Main features

Physical features
Dimensions: height 93 mm, width 95 mm, depth 157 mm
Weight: 298 g, without cable
Cable: detachable connection cable 1.6 m
Connection: RJ-45 telephone socket connection
Housing material: PC
Display: beeper, LED
Data transfer: Supported interface USB keyboard,
virtual USB data transfer,
RS-232 (optional)

Power
Operating mode: Handheld barcode scanner, intuitive scanning
Programming method: Manual (recognition of special barcodes)
Firmware update: Supported
Input voltage: USB 5 ± 0.25VDC
Power: Standby: 110 mA Scanning: 370 mA
Image size: 1280 x 800 pixels
Field of view: Horizontal: 64 °, vertical: 44 °
Scanning angle: ± 70 °, ± 70 °, 360 ° (inclination, distance, rolled )
Print contrast: 20% minimum reflection difference
Min resolution: SR ： 1D （Code 128） ： 4mil
decoding depth
5 mil Code39 (3 characters)) 5mm - 55mm
10 mil Code39 (3 characters)) 0mm - 140mm
13 mil UPC ( 6 characters)) 0 mm - 150mm
20 mil Code39 (1 character)) 0mm - 239mm
6.7 mil PDF417 (20 characters)) 15mm– 60mm
10 mil QR (20 characters)) 0mm - 40mm
20 mil QR (20 characters)) 0mm - 150mm

Data acquisition
Decoding capability 1D: UPC-A, UPC-E, UPC-E1, EAN-13, EAN-8, ISBN (Bookland EAN), ISSN, Code 39, Full ASCII Code 39, Code 32, Trioptic Code 39, Interleaved 2 of 5, Industrial 2 of 5 (Discrete 2 of 5), Matrix 2 of 5, Codabar ( NW7), Code 128, UCC / EAN 128, ISBT 128, Code 93, Code 11 (USD-8),
MSI / Plessey, UK / Plessey, China Post, China Finance, Telepen, GS1 DataBar (formerly RSS) Variants

Decoding capability 2D: PDF417, QR Code, DataMatrix, Han Xin Code, Aztec Code, MicroQR Code, MicroPDF417

Environmental influences
Temperature: Operation -20 ° to 55 ° C
Storage: -20 ° to 75 ° C
Humidity: 5% bi s 95% (non-condensing)
Waterproof: IP50
Safety: Safety: EN62471: 2008 - EN60950
EMC: EN55022, EN55024
Depth of fall: More than 30 times 1.5 m on concrete
