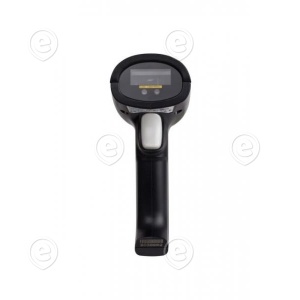

KP1102 ADVANCED 1D Barcode Reader

SKU: KP1102
EAN: 655222934840
Brand: Kaptur
Unit: tk
Qty: Out of Stock
Price: 71,98 €
tk
 Add to cart
KP1102 ADVANCED 1D
The KP1102 Advanced 1D laser supports standard RS-232 / USB / PS2 interfaces. Due to its compact design and good performance, the barcode scanner is very well suited for applications in supermarkets, shopping centers and logistics.

Main features

Physical properties
Dimensions: height 76 mm, width 67 mm, depth 168 mm
Weight: 120 g, without cable
Cable: Detachable connection cable 1.6 m
Connection: RJ-45 telephone socket connection < br> Housing material: ABS
display: beeper, LED

Data transfer
Supported interfaces: USB keyboard,
virtual USB data transfer,
RS-232, (optional)

Performance
Operating mode: Handheld barcode scanner, intuitive scanning
Programming method: Manual (recognition of special barcodes)
Firmware update: Supports
Input voltage: USB 5 ± 0.25VDC
Current: standby: 30mA scanning: 170 mA
Light source: 645-660 nm laser diode
Scanning angle: ± 60 °, ± 65 °, 42 ° ( Inclination, distance, rolled)
Print contrast: 25% minimum reflection underc hied
Decoding depth:
3 mil 27 mm –65 mm
4 mil 27 mm –60 mm
5 mil 18 mm –132 mm
10 mil 10 mm –320 mm
13 16 mm –380 mm
15 mm 13 mm –500 mm
20 mm 19 mm –620 mm
30 mm 25 mm –770 mm

Data acquisition
Decoding ability 1D: UPC-A, UPC-E, UPC-E1, EAN-13, EAN-8, ISBN (Bookland EAN), ISSN, Code 39, Full ASCII Code 39, Code 32, Trioptic Code 39, Interleaved 2 of 5, Industrial 2 of 5 (Discrete 2 of 5), Matrix 2 of 5, Codabar (NW7), Code 128, UCC / EAN 128, ISBT 128, Code 93, Code 11 (USD-8), MSI / Plessey , UK / Plessey, China Post, China Finance, Telepen, GS1 DataBar (formerly RSS) variants

Environmental influences
Temperature: Operation 0 ° to + 60 ° C
Storage: -40 ° to + 60 ° C
Humidity: 5% to 95% (non-condensing)
Waterproof: IP50
Safety: Laser Safety: EN60825-1 Class 1
EMC: EN55022, EN55024
Electrical Safety: EN60950-1
Depth of fall: Multiple drops from 4.0 m onto concrete
