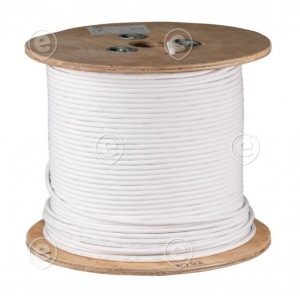

INFRALAN® U/FTP Cat.6A 500MHz, AWG23 4P Dca, 500m Box

SKU: EFB99978.500-CPR
EAN: 4049759207236
Brand:
Unit: kast
Qty: Out of Stock
Price: 515,41 €
kast
 Add to cart

ARTICLE INFORMATION

INFRALAN® U/FTP Cat.6A Installation Cable

PRODUCT FEATURES

  • Bending radius (dynamic)
  • 57.6 mm
  • Bending radius (static)
  • 28.8 mm
  • Cable structure
  • U/FTP
  • Category
  • 6A (IEC)
  • Conductor category
  • Kl.1 = single wire
  • Conductor material
  • CU, tinned
  • AWG-size/quantity of cores
  • 23/1
  • Diameter conductor
  • 0.55 mm
  • Nominal cross section conductor
  • 0.26 mm²
  • Screen over stranding
  • without
  • Stranding element
  • pairs
  • Screen over stranding element
  • foil + braid
  • Core insulation
  • foam-skin PE
  • Core identification
  • Colour
  • Material outer sheath
  • LSZH
  • Euro class
  • Dca
  • Flame retardant
  • acc. EN 60332-1
  • Halogen free
  • acc. EN 60754
  • Low smoke
  • acc. EN 61034
  • Operating temperature, flexible
  • 0 – 50 °C
  • Operating temperature, fix
  • -20 – 75 °C
  • NVP value
  • 74 %
  • Loop resistance
  • <88.4 Ohm/km
  • Impedance
  • 100 ± 25 Ohm
  • Separation class acc. EN50174-2
  • C
  • Max. Freuqency
  • 500 MHz
  • Cabling standards
  • EN 50173;ISO/IEC 11801;ANSI/TIA 568-C.2
  • Installation standard
  • EN 50174
  • Harmonised Standard
  • EN 50575
  • Directive/Regulation
  • RoHS 2011/65/UE;REACH 1907/2006/EC
  • Transmission standards
  • IEEE 802.3 10Mbit to 10Gbit
  • Cable
  • IEC 61156-5
