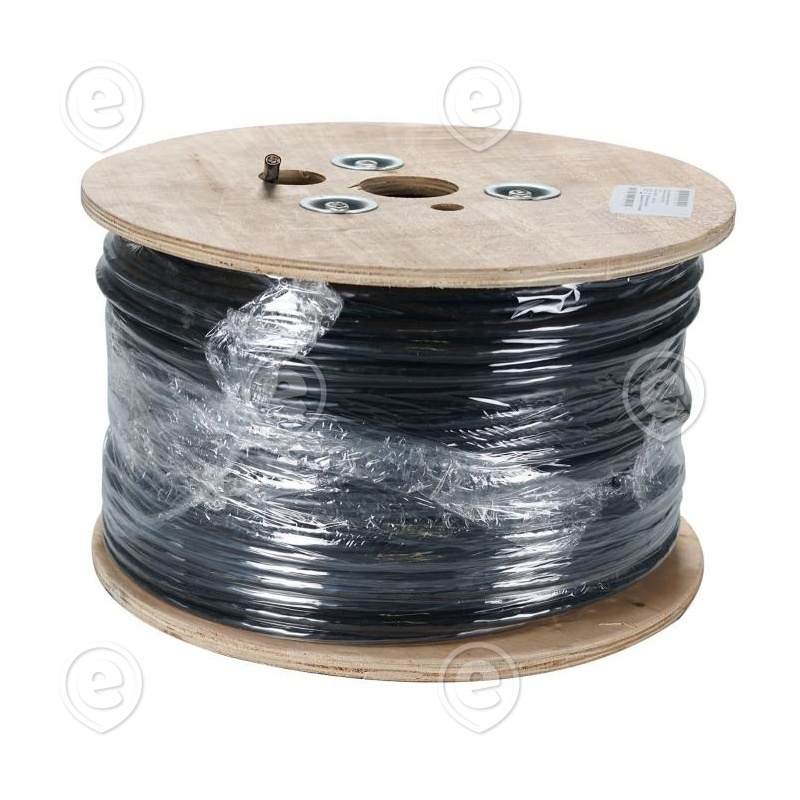

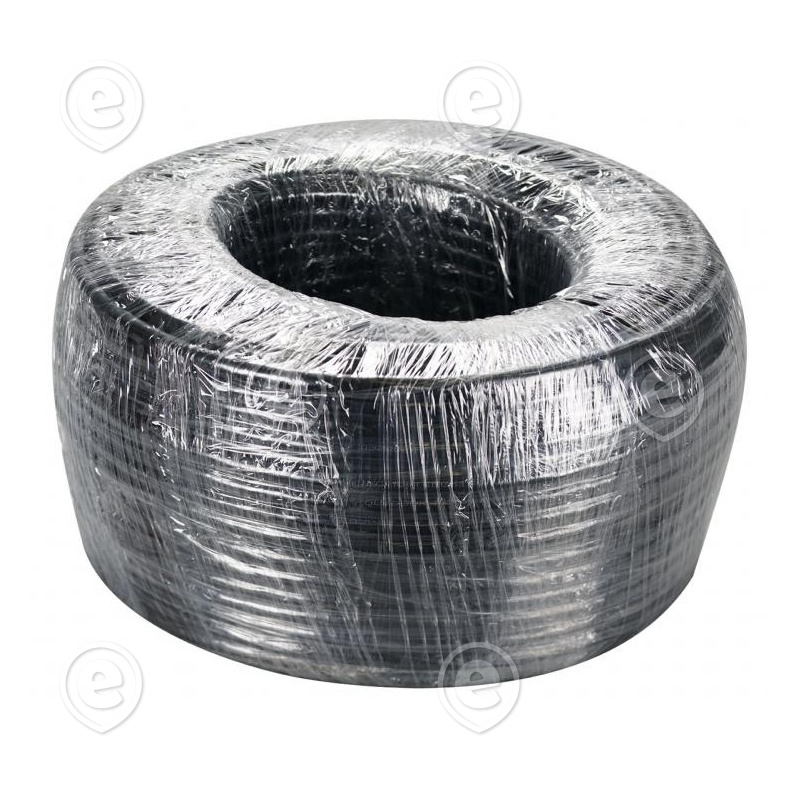

Cat.7 In-/Outdoor cable 1200MHz AWG23 S/FTP, PE jacket, inner Dca, Sw&Or,50m

SKU: EFB99733.50-CPR
EAN: 4049759254063
Brand:
Unit: pakk
Qty: Out of Stock
Price: 75,58 €
pakk
 Add to cart

ARTICLE INFORMATION

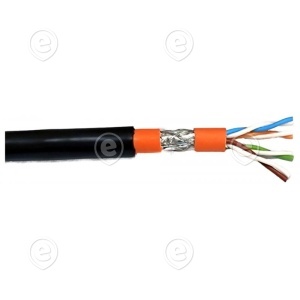

The Cat.7 S/FTP indoor/outdoor cable is characterised by the cable construction 4x2xAWG23/1 and achieves a transmission frequency of up to 1200 MHz. The cable has a PE outer sheath and a halogen-free inner sheath and conforms to the IEC 60332-1 standard and Construction Products Regulation (BauPVO) Euroclass Dca. The cable is suitable for installations in dry or damp rooms, outdoors or underground. Conforms to the standards ISO/IEC 11801, DIN EN 50173, DIN EN 50288-4-1.


Technical properties

AWG-size: 23/1
Bending radius (dynamic): 8 x OD
Bending radius (static): 7 x OD
Cable: EN 50288-4-1
IEC 61156-5
Cable Construction: S/FTP
Cabling standards: EN 50173-1
ISO/IEC 11801
Category: 7
Characteristic impedance: 100 ± 15 Ohm
Conductor category: Class 1 = solid
Conductor material: Cu, tinned
Core identification: Colour
Core insulation: foam-skin PE
Coupling attenuation: 80 dB
Coupling attenuation Type: Type 1
Diameter conductor: 0.56 mm
Directive/Regulation: REACH 1907/2006/EC
RoHS 2011/65/UE
Flame retardant: acc. EN 60332-1
acc. IEC 60754-2
acc. IEC 61034
Halogen free: acc. EN 60754
acc. EN 60754-1/2
Halogen free (according to EN 60754-1/2): True
Installation standard: EN 50174
Loop resistance: 171.2 Ohm/km
Low smoke: acc. EN 61034
Material outer sheath: PE + LSZH
Max. Freuqency: 1200 MHz
NVP value: 76 %
Operating temperature, storage: -30 – 70 °C
Permitted cable outer temperature after assembling without vibration: -30 – 70 °C
Permitted cable outer temperature during assembling/handling: 0 – 50 °C
PoE: acc. to IEEE802.3af PoE
acc. to IEEE802.3at PoE+
acc. to IEEE802.3bt 4PPoE
yes
Resistance unbalance: 3 %
Screen over stranding: foil + braid
Screen over stranding element: Foil
Separation class acc. EN50174-2: D
Stranding element: Pairs
Test voltage DC, 1 min: 1000 V
Transmission standards: IEEE 802.3 10Mbit to 10Gbit
UV resistance: yes
