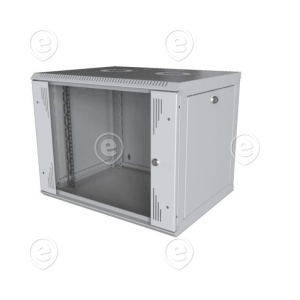

19" Wall Housing 16U, Fixed, 1-Part, RAL7035, Depth 600 mm
SKU: EFB791716VGR.60
Brand:
Unit: tk
Qty: Out of Stock
Brand:
Unit: tk
Qty: Out of Stock
Price:
277,20 €
ARTICLE INFORMATION
Steel sheet housing with screwed frame, completely pre-assembled, self-ventilatedPrepared for Plug & Play 2-fan unit Art.-No. 691656xx
Side walls removable, lockable, locks equal to door lock
Roof and bottom with pre-punched openings for cable entry (145 x 70 mm)
Also suitable fpr use of 2 x single fans in roof
Inside front and rear 4 x 19“ profile rails, galvanised, depth-adjustable
Front door with latch locking and window made of certified safety glass (thickness 4 mm)
Internal earthing of all cabinet sections
Paint finish RAL7035, light grey
Protection degree IP20
Included in delivery: 1 x brush terminal, earthing cables, 2 x key
Delivery in transport packaging
PRODUCT FEATURES
- Mounting level
- Front side
- Type of profile rail
- L-shaped
- With roof plate
- True
- With sidewall
- True
- Demountable
- True
- Material
- steel
- Surface finishing
- powder coating
- Degree of protection (IP)
- IP20
- Number of doors
- 1
- Number of cartons
- 1
| Height Rack Unit | 16U |
| Depth | 600mm |
| Color | Grey |
