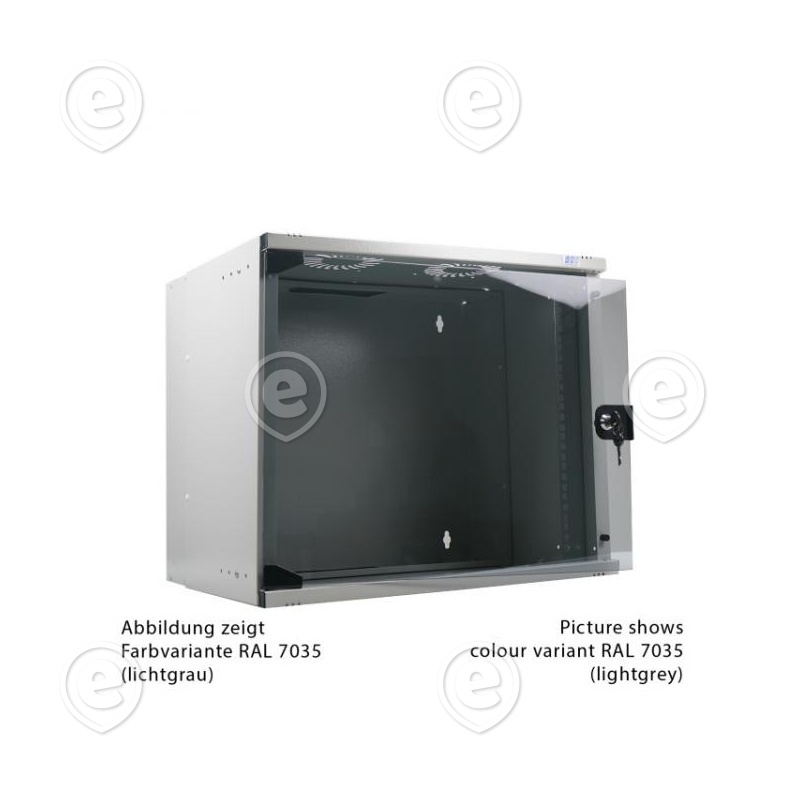

Seinakapp 9U kõrgusega, sügavus 450 mm, tööriistavaba komplekteerimine, RAL7035
Tootekood:
WGF-1909GR.45
EAN:
4049759279301
Kaubamärk:
Kandevõime:
50kg
Kõrgus U-des:
9U
Sügavus:
450mm
Värv:
Hall
Ühik:
kmpl
Laoseis:
Tarneaeg 5-30 päeva.
90,11 €
Failid
ARTICLE INFORMATION
19" Wall housing 1-part, type Flat PackSteel sheet housing screwable, not pre-assembled
Front door fully made of certified safety glass, thickness 4 mm, smoked, tempered, smoothed, antistatic
Front door lockable, Door opening angle 120°
Door stop easy changeable (right/left)
Sidewalls not detachable
Roof prepared for mounting of 2 x single fans
Roof and bottom with cable entry 145 x 70 mm
Inside 2 x 19" profile rails, depth-dajustable, with lateral opening for cable routing
Paint finish RAL7035 light grey / RAL9005 (jet black) / RAL9010 (pure white)
Width 535 mm, depth 450 / 600 mm
Max. load 80 kg (static, equally distributed)
Protection degree IP20
Incl. key
Delivery unassembled in 1 carton with handle
PRODUCT FEATURES
- Mounting level
- Front side
- Type of profile rail
- L-shaped
- Type of ventilation
- Passive
- Modular spacing
- 482.6 mm (19 inch)
- With roof plate
- True
- With earthing
- True
- With front door
- True
- With sidewall
- True
- Demountable
- True
- Model
- With permanent frame
- Material
- steel
- Surface finishing
- powder coating
- Degree of protection (IP)
- IP20
- Number of doors
- 1
- Number of cartons
- 1
