ARTICLE INFORMATION

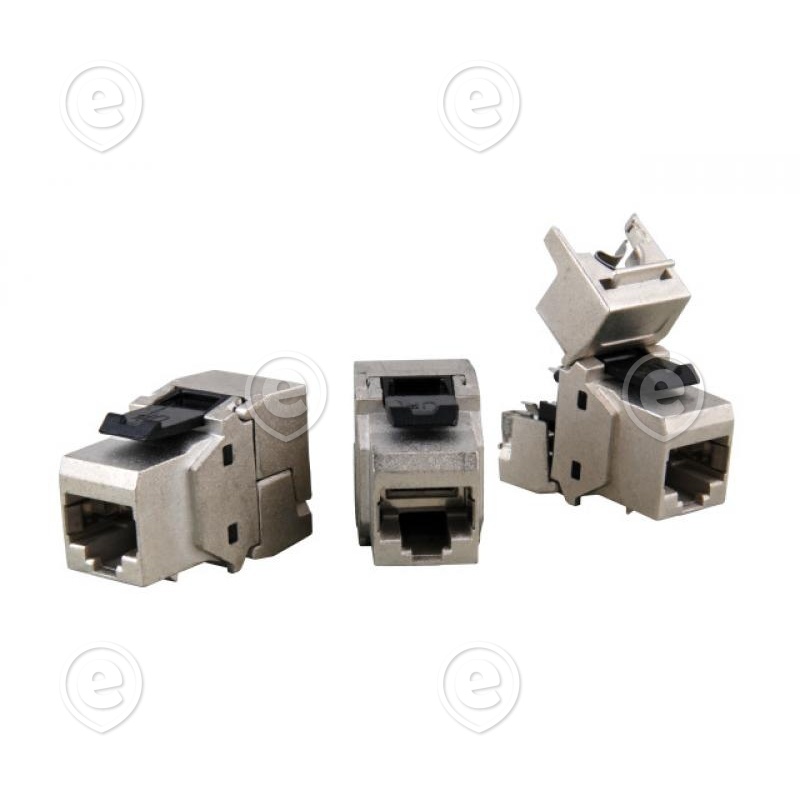

The RJ45 keystone module provides a combination of excellent transmission qualities and an easy tool-free assembly. The high quality of the RJ45 keystone module ensures very good qualities for 10 Gigabit Ethernet applications. No special tools are needed for the assembly. The assembly is easy and handy to execute. With the RJ45 keystone module you receive a fully shielded module, which will provide good service for a long time in your network installation.

Specifications:
Cat.6A components certified according to ANSI/TIA-568-C.2, ISO/IEC 11801 and IEC 60603-7-51
Compact cable presorter for AWG 26/1 .. AWG 22/1 and AWG26/7 .. AWG24/7
Pair management according to TIA 568A /B colour codes
Appropriate for distribution panels and frames with keystone slots

Scope of delivery:
1 x RJ45 keystone, Cable coder (Black: AWG22/1-AWG26/1; Grey: AWG24/7-AWG26/7),1 x copper foil, 1 x cable tie, dust cover, mounting instruction
