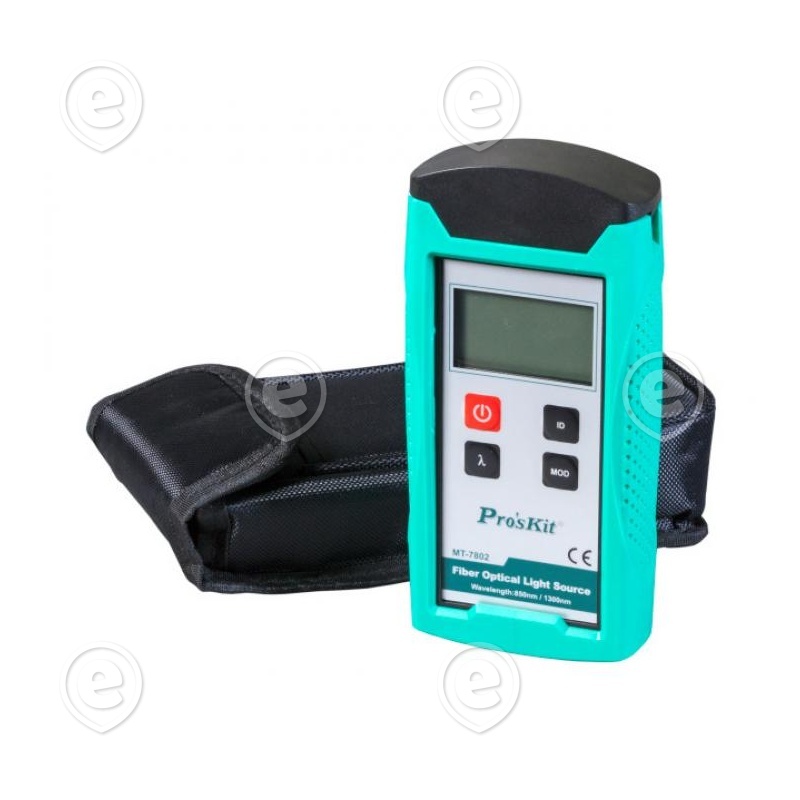

Fiiberoptiline valgusallikas 850/1300nm, mõõturile HS15-MESS

Fiiberoptiline valgusallikas 850/1300nm, mõõturile HS15-MESS

Tootekood: HS15-LS2
EAN: 4049759167820
Kaubamärk:
Ühik: tk
Laoseis: Tellimisel
Hind: 443,27 €
tk
 Lisa korvi

ARTICLE INFORMATION

Fiber Optic Light Source 850nm and 1300nm to use with item HS15-MESS. In combinated use this units are for measureing IL attentuation of Multimode fiber transmission link.

Specifications:
Wavelength: 850nm/ 1300nm +/-10nm
Power Stability: +/-0,05db for 1 hour, +/- 0,1dB for 8 hours
Output Power: >-10dBm
Optic Connector: SC/PC
Signal Modulation: 270Hz, 1kHz, 2kHz
Low Battery warning
Storage Temperature: -20°C ~ +70°C
Storage Humidity: < 90%RH
Operating Temperature: -10°C ~ +60°C
Operating Humidity: < 90%RH
Power Source: 2x 1,5V AA batteries (not included)
Dimension: 165x80x35mm
Weight: 280g

PRODUCT FEATURES

  • Measured value memory
  • True
  • Type of indication
  • LCD/monitor
  • With PC/printer interface
  • False
  • Suitable for network protocol measurement
  • False
  • Available Connector
  • SC;LC
  • Power
  • 2 x AA
  • Dimension
  • 165 x 80 x 35 mm
  • Net weight
  • 280 g
  • Operating temperature
  • -10 – 60 °C
  • Storage temperature
  • -20 – 70 °C
  • Wave length
  • 850 – 1300 nm
  •
  •
